Description

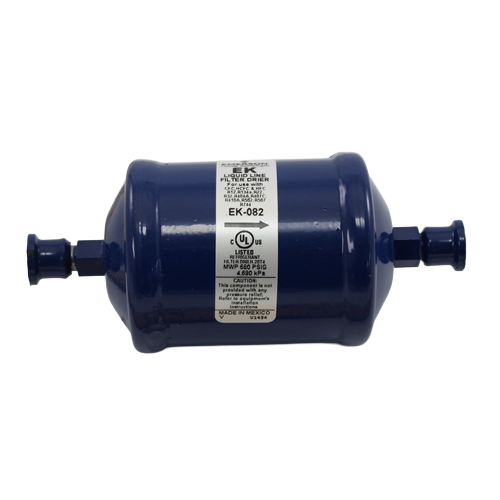

The Copeland 047605 Liquid Line Filter Drier (Model EK082) is a high-performance refrigeration system component engineered to remove moisture, acid, and solid contaminants from the liquid line of refrigeration and air conditioning systems. Designed for reliable field installation, this filter drier helps safeguard compressors and other system components from damaging debris and moisture ingress.
Key Features
- 1/4″ flare connections for easy, leak-free installation
- 8 cubic inch capacity for effective moisture and contaminant absorption
- 20 micron filtration rating to capture fine particulates and protect downstream components
- 680 PSI maximum working pressure for compatibility with a wide range of refrigerants and system pressures
- Liquid line design optimized for installation in the refrigerant liquid line between the condenser and expansion device
Product Specifications
- Brand: Copeland
- SKU / Part Number: 047605
- Model: EK082
- Connection Type: 1/4″ Flare
- Capacity: 8 cubic inches
- Filtration: 20 Micron
- Maximum Working Pressure: 680 PSI
- Application: Liquid Line Filter Drier
Applications
- Residential and light commercial air conditioning systems
- Refrigeration systems requiring liquid line moisture and contamination control
- New installations and system changeouts or retrofits
- Post-compressor burnout cleanup applications
