Description

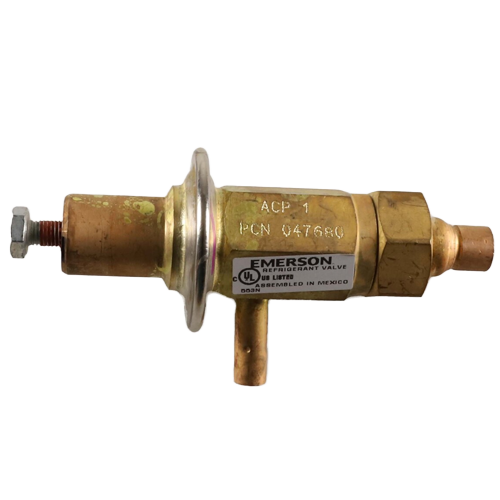

Copeland 047680 Automatic Thermal Expansion Valve (TXV)
The Copeland 047680 is a precision-engineered Automatic Thermal Expansion Valve (TXV) designed for reliable refrigerant flow control in residential and light commercial HVAC and refrigeration systems. With its angle body configuration and sweat (ODF) connections, this valve integrates cleanly into a wide range of system designs while delivering consistent, accurate superheat control.
Key Features
- Valve Type: Automatic Thermal Expansion Valve (TXV)
- Body Style: Angle body configuration for flexible installation
- Connection Size: 1/4″ inlet x 3/8″ ODF (sweat) outlet
- Equalizer Type: Internal equalizer — ideal for single-circuit evaporators with low pressure drop
- Port Diameter: 0.05″ for precise refrigerant metering
- Pressure Range: Fully adjustable from 0–80 psig
- Factory Pressure Setting: 40 psig
- Model: ACP 1 IE 1/4 x 3/8 ODF Ang
Product Details
The internal equalizer design makes this TXV well-suited for evaporators where the pressure drop across the coil is minimal, ensuring accurate superheat sensing without the need for an external equalizer line. The angle body orientation simplifies piping layouts in tight equipment spaces. The 0.05″ port diameter is calibrated to deliver precise metering capacity matched to the system’s design load.
The valve’s adjustable pressure range of 0–80 psig — with a factory-set point of 40 psig — allows field technicians to fine-tune superheat settings to match specific system requirements, refrigerant types, and operating conditions.
Applications
- Residential and light commercial air conditioning systems
- Refrigeration equipment with single-circuit evaporator coils
- Systems requiring precise superheat control and refrigerant metering
- Retrofit and replacement applications requiring a compact angle-body TXV
Why Choose the Copeland 047680?
Copeland is a trusted name in refrigeration and HVAC components, known for manufacturing valves and compressors to exacting standards. The 047680 TXV delivers dependable performance, easy field adjustment, and a compact form factor — making it a go-to choice for HVAC technicians and contractors seeking quality and reliability.
