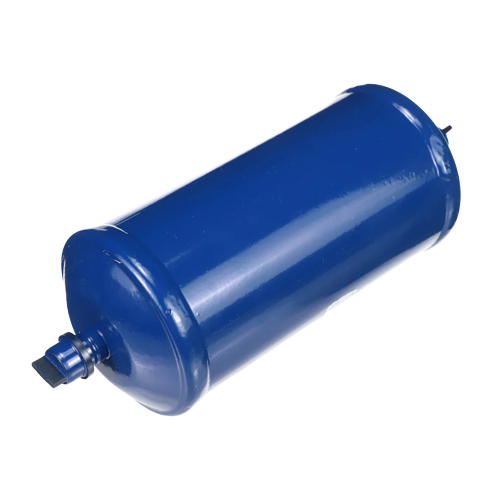

Copeland 048221 Liquid Line Filter Drier, 1/2″ Sweat, 41 Cu In, 20 Micron, 680 PSI (EK414S)

Description

Copeland EK414S Liquid Line Filter Drier — Model 048221

The Copeland EK414S (SKU 048221) is a high-performance liquid line filter drier engineered to protect refrigeration and air conditioning systems from moisture, acid, and solid contaminants. With a robust 680 PSI maximum working pressure rating, this filter drier is built to handle the demands of commercial and residential HVAC/R applications.

Key Features

• 1/2″ sweat (solder) connections for easy, leak-free installation
• 41 cubic inch capacity for effective moisture and contaminant removal
• 20-micron filtration rating to capture fine particulates and protect system components
• 680 PSI maximum working pressure for reliable performance across a wide range of refrigerants
• Liquid line design removes moisture, acid, and debris before the expansion device
• Durable construction for long service life in demanding HVAC/R environments

Applications

• Residential and light commercial air conditioning systems
• Refrigeration systems requiring liquid line protection
• New installations and system changeouts
• Post-compressor burnout cleanup and system retrofits

Specifications

• Brand: Copeland
• SKU / Part Number: 048221
• Model: EK414S
• Connection Type: 1/2″ Sweat (Solder)
• Capacity: 41 cubic inches
• Filtration: 20 Micron
• Maximum Working Pressure: 680 PSI
• Filter Type: Liquid Line Filter Drier
