Description

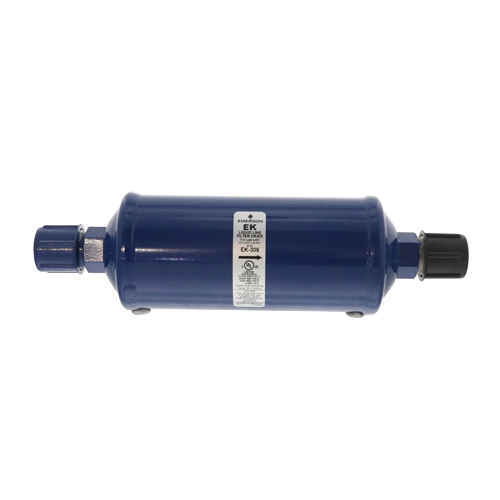

The Copeland EK306 (SKU 048668) is a high-performance liquid line filter drier engineered to protect refrigeration and air conditioning systems from moisture, acid, and particulate contamination. With a robust 680 PSI maximum working pressure rating, this drier is built for demanding commercial and residential HVAC/R applications.
Key Features
- Model: EK306
- Connection type: 3/4″ flare fittings for easy, leak-free installation
- Volume: 30 cubic inch desiccant capacity for effective moisture and acid removal
- Filtration rating: 20 micron to capture fine particulates and protect system components
- Maximum working pressure: 680 PSI — suitable for high-pressure refrigerant systems
- Liquid line application: designed to be installed in the liquid line to safeguard expansion valves and other downstream components
Why Use a Liquid Line Filter Drier?
Moisture, acid, and debris in a refrigerant circuit can cause compressor failure, valve wear, and system inefficiency. The Copeland EK306 filter drier removes these contaminants before they reach critical components, extending system life and maintaining peak efficiency.
Typical Applications
- Air conditioning systems
- Commercial refrigeration equipment
- Heat pump systems
- New installations and system changeouts
- Post-burnout cleanup procedures
Specifications
- SKU: 048668
- Model: EK306
- Brand: Copeland
- Connection size: 3/4″ flare
- Cubic inch capacity: 30 cu in
- Micron rating: 20 micron
- Maximum pressure: 680 PSI
- Line type: Liquid line
