Description
Overview

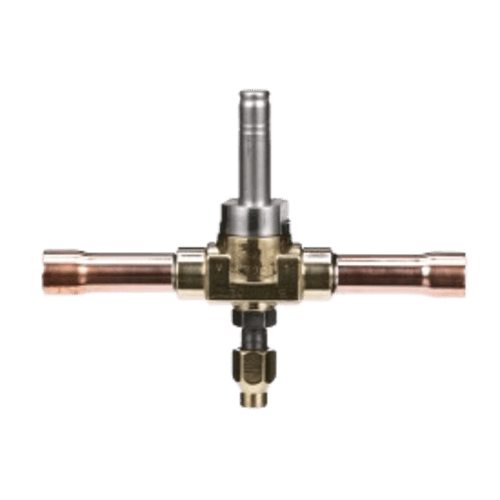

The Copeland 049189 (model 200RB5T5M) is a pilot-operated, 2-way normally closed refrigeration solenoid valve body designed for demanding commercial and industrial refrigeration applications. Featuring a 5/8″ sweat connection and a built-in manual stem override, this valve delivers reliable, precise flow control across a wide range of refrigerant systems.
Key Features
- 2-way, normally closed (NC) configuration ensures the valve defaults to a closed position when de-energized, providing a safe fail-state for refrigerant circuits
- Pilot-operated design for efficient, low-power actuation on larger line sizes
- 5/8″ sweat (solder) connections for secure, leak-free installation
- Manual stem override allows technicians to open the valve manually during service, commissioning, or power-loss situations
- R22 refrigerant capacity: 8.2 tons — suitable for medium to large commercial refrigeration systems
- R134a refrigerant capacity: 6.2 tons — compatible with modern, environmentally preferred refrigerants
- Solenoid valve body design allows for coil replacement without removing the valve from the line
Specifications
- SKU: 049189
- Model Number: 200RB5T5M
- Brand: Copeland
- Valve Type: 2-Way, Normally Closed (NC)
- Operation: Pilot Operated
- Connection Type: 5/8″ Sweat (Solder)
- Refrigerant Compatibility: R22, R134a
- R22 Capacity: 8.2 Tons
- R134a Capacity: 6.2 Tons
- Manual Stem: Included
Applications
- Commercial refrigeration liquid line service
- Pump-down cycle control
- Evaporator pressure regulation circuits
- Multi-circuit refrigeration systems requiring individual zone shutoff
