Description

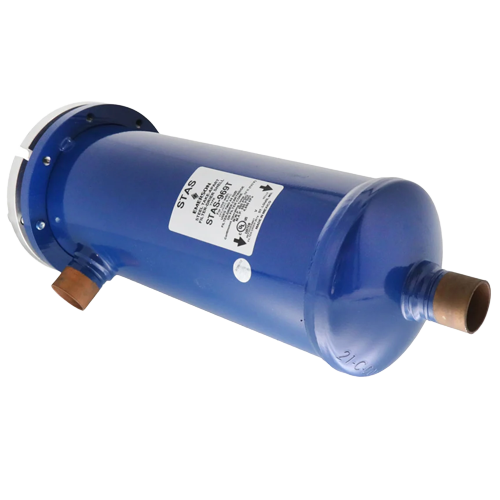

The Copeland STAS969T (SKU 053012) is a heavy-duty steel liquid line filter drier engineered to protect refrigeration and air conditioning systems from moisture, acid, and particulate contamination. Designed for demanding commercial and industrial refrigeration applications, this filter drier shell delivers reliable system protection and long service life.
Key Features
- Large 96 cubic inch capacity for extended service intervals and high-capacity systems
- 1-1/8″ sweat (solder) connections for straightforward field installation
- Dual-core design — cores sold separately, allowing field selection of desiccant type to match system refrigerant and oil
- 680 PSI maximum working pressure for compatibility with high-pressure refrigerants
- Rugged steel shell construction for durability in commercial and industrial environments
- Effectively removes moisture, acid, and solid contaminants from the liquid line
Specifications
- SKU: 053012
- Model: STAS969T
- Brand: Copeland
- Connection Size: 1-1/8″ Sweat (Solder)
- Shell Volume: 96 Cubic Inches
- Core Configuration: Dual Core (Cores Not Included)
- Maximum Working Pressure: 680 PSI
- Shell Material: Steel
- Application: Liquid Line
Application
The STAS969T is ideal for use in large commercial refrigeration systems, chillers, and air conditioning equipment where high-capacity moisture and acid removal is essential. The dual-core shell allows technicians to select the appropriate desiccant core for the specific refrigerant in use, making it a versatile choice across a wide range of system types. Always replace or inspect cores during system servicing to maintain peak filtration performance.
Installation Notes
- Install in the liquid line with flow direction arrow pointing toward the expansion device
- Cores must be purchased separately — select core type based on system refrigerant and oil
- Use proper brazing procedures for 1-1/8″ sweat connections; protect desiccant from heat during installation
- Follow all applicable local codes and manufacturer guidelines during installation
