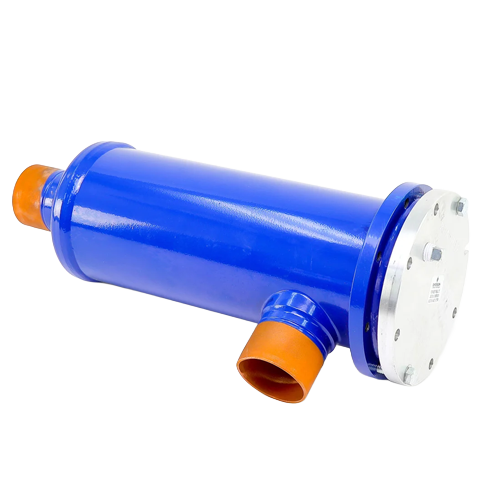

Copeland STAS9617T Steel Liquid Line Filter Drier (053018)
The Copeland STAS9617T is a heavy-duty steel liquid line filter drier engineered to protect refrigeration and air conditioning systems from moisture, acid, and particulate contamination. Built for demanding commercial and industrial applications, this filter drier features a robust steel shell and a high-capacity 96 cubic inch volume, making it ideal for large-tonnage systems that require reliable refrigerant circuit protection.
Key Features
- 2-1/8″ sweat (ODF) connections for straightforward brazing installation
- 96 cubic inch shell volume delivers high desiccant capacity for large systems
- 680 PSI maximum working pressure rated for high-pressure refrigerant applications
- Dual core design — cores sold separately, allowing field selection of desiccant type
- Steel shell construction provides superior durability and resistance to mechanical damage
- Liquid line installation protects expansion valves, compressors, and other downstream components
- Removes moisture, acid, and solid contaminants from the refrigerant circuit
Product Specifications
- SKU: 053018
- Model: STAS9617T
- Brand: Copeland
- Connection Size: 2-1/8″ Sweat (ODF)
- Shell Volume: 96 Cubic Inches
- Maximum Working Pressure: 680 PSI
- Core Configuration: Dual Core (Cores Not Included)
- Shell Material: Steel
- Application: Liquid Line
Application & Installation Notes
The STAS9617T is designed for liquid line installation in commercial refrigeration and HVAC systems. The dual core configuration allows technicians to select and install the appropriate desiccant cores based on system refrigerant type and contamination requirements. Cores must be purchased separately. Always install with flow direction arrow pointing toward the expansion device, and follow all applicable brazing and refrigerant handling procedures during installation.
