Description

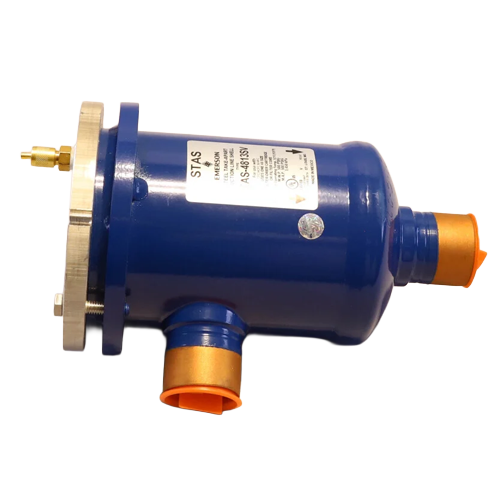

The Copeland STAS4813SV (SKU 053043) is a heavy-duty steel suction line filter drier engineered to protect refrigeration and air conditioning systems from moisture, acid, and particulate contamination on the suction side of the circuit. Its robust steel shell and high-capacity design make it a dependable choice for commercial and industrial refrigeration applications.
Key Features
- 1-5/8″ sweat (ODF) connections for straightforward field installation
- 48 cubic inch shell volume for high-capacity filtration and drying
- Single-core design — core sold separately, allowing flexibility in desiccant selection
- 500 PSI maximum working pressure for compatibility with a wide range of refrigerants and system pressures
- Steel shell construction for durability in demanding commercial and industrial environments
- Suction line configuration protects the compressor from harmful contaminants
Product Specifications
- Model: STAS4813SV
- SKU: 053043
- Connection Type: Sweat (ODF)
- Connection Size: 1-5/8″
- Shell Volume: 48 cubic inches
- Core: Single core (not included)
- Maximum Working Pressure: 500 PSI
- Shell Material: Steel
- Application: Suction line
Application
Suction line filter driers are installed on the low-pressure (suction) side of the refrigeration system, typically after a compressor burnout or during system servicing, to remove moisture, acid, and debris before they can damage the compressor. The STAS4813SV’s large 48 cubic inch capacity and 500 PSI rating make it well suited for larger commercial refrigeration and HVAC systems. The separate core design allows technicians to select the appropriate desiccant blend for the specific refrigerant and system conditions.
