Description

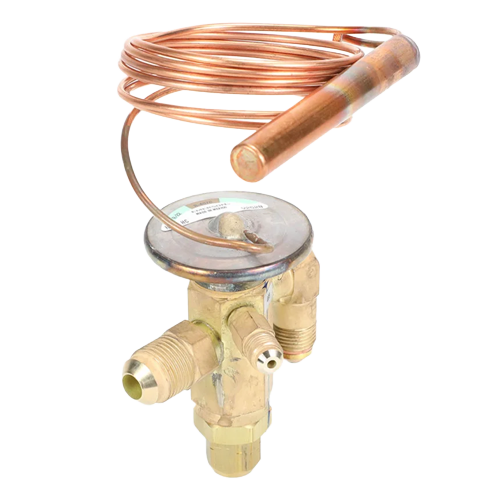

Copeland HFE 3 HC 5FT 3/8 x 1/2 SAE ANG — Externally Equalized Thermal Expansion Valve
The Copeland 053317 is a precision-engineered Thermal Expansion Valve (TXV) designed for reliable refrigerant metering in medium-temperature refrigeration and air conditioning applications. Featuring an angle body configuration with 3/8″ x 1/2″ SAE flare connections and a 5-foot capillary tube, this valve delivers accurate superheat control for systems operating on R22 or R407C refrigerant at up to 3 tons of capacity.
Key Features
- Model: HFE 3 HC 5FT 3/8 x 1/2 SAE ANG
- Angle body design for flexible installation in tight spaces
- 3/8″ inlet x 1/2″ outlet SAE flare connections for leak-free refrigerant line hookup
- 5-foot capillary tube for remote bulb placement and accurate sensing
- Compatible refrigerants: R22 and R407C
- Rated capacity: 3 tons
- Medium temperature charge — optimized for medium-temperature evaporator applications
- Externally equalized — equalizer port compensates for evaporator pressure drop, ensuring precise superheat control across the coil
Application & Benefits
The external equalizer connection makes this TXV ideal for use with multi-circuit evaporators or coils with significant refrigerant-side pressure drop, where an internally equalized valve would result in poor superheat control. The medium-temperature charge ensures stable operation across typical air conditioning and commercial refrigeration evaporator temperature ranges. The angle body orientation simplifies piping layouts and reduces the need for additional fittings in confined installations.
Specifications
- SKU: 053317
- Brand: Copeland
- Valve Type: Thermal Expansion Valve (TXV)
- Body Style: Angle
- Connection Type: SAE Flare
- Inlet Connection: 3/8″
- Outlet Connection: 1/2″
- Capillary Tube Length: 5 feet
- Refrigerant Compatibility: R22 / R407C
- Capacity: 3 Ton
- Temperature Charge: Medium
- Equalization: External
