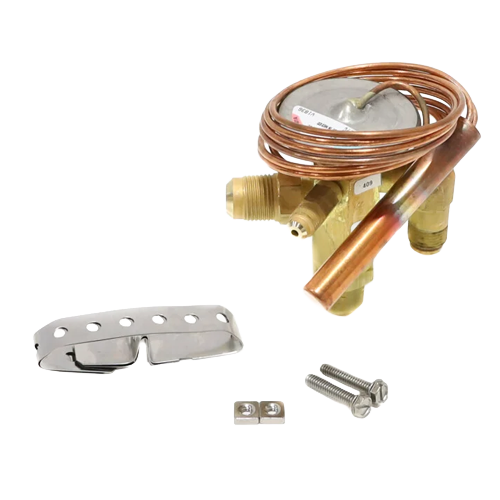

Copeland 054138 3/8″ x 1/2″ Flare Angle Body TXV, 3.5 Ton R12, 5′ Cap Tube

Description

Overview

The Copeland 054138 is a precision-engineered Externally Equalized Thermal Expansion Valve (TXV) designed for reliable refrigerant metering in medium-temperature refrigeration and air conditioning applications. Sold under model number HFE 3 1/2 FC 5FT 3/8 x 1/2 SAE ANG, this valve delivers consistent superheat control and system efficiency in R12 systems rated at 3.5 tons of capacity.

Key Features

• Angle body design for versatile installation in tight or angled piping configurations
• 3/8″ inlet x 1/2″ outlet flare connections (SAE) for secure, leak-resistant hookup
• 5-foot capillary tube for flexible bulb placement and accurate sensing
• Externally equalized for accurate superheat control in systems with higher pressure drops across the evaporator
• Medium temperature charge matched to R12 refrigerant applications
• 3.5-ton R12 capacity rating for residential and light commercial systems

Specifications

• Model Number: HFE 3 1/2 FC 5FT 3/8 x 1/2 SAE ANG
• SKU: 054138
• Refrigerant: R12
• Capacity: 3.5 Ton
• Temperature Charge: Medium Temperature
• Equalization: External
• Body Style: Angle Body
• Inlet Connection: 3/8″ SAE Flare
• Outlet Connection: 1/2″ SAE Flare
• Capillary Tube Length: 5 Feet

Application

This TXV is ideal for use in medium-temperature refrigeration systems and air conditioning equipment utilizing R12 refrigerant. The externally equalized design makes it particularly well-suited for evaporators with significant pressure drop, ensuring accurate superheat control and protecting the compressor from liquid slugging. The angle body configuration simplifies installation in systems where straight-through valve bodies are impractical.
