Description

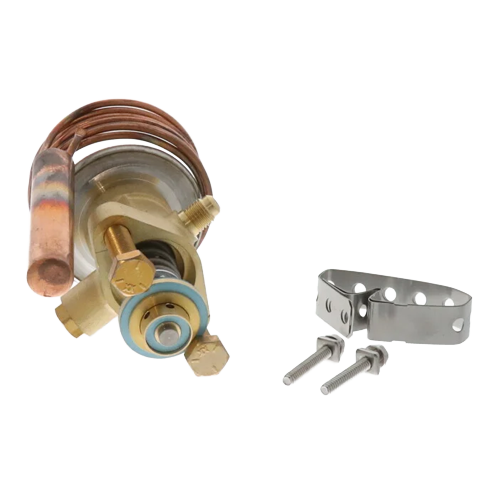

The Copeland 054401 is a TCLE series, 7-1/2-ton externally equalized Thermal Expansion Valve (TXV) engineered for reliable refrigerant metering in commercial and light-industrial refrigeration systems. Designed specifically for R22 refrigerant at medium temperature charge applications, this valve delivers precise superheat control to maximize system efficiency and protect the compressor from liquid slugging.
The valve features an SAE external connection with a 5-foot capillary tube length, providing installation flexibility in a wide range of system configurations. The externally equalized design ensures accurate pressure sensing at the evaporator outlet, making it ideal for use with multi-circuit or longer evaporator coils where pressure drop is a concern. Supplied in a VLF (Valve Less Flange) configuration for direct integration into existing piping assemblies.
Key Features
- Series: TCLE — 7-1/2 Ton capacity
- Refrigerant: R22
- Application: Medium temperature charge
- Capillary tube length: 5 feet (SAE external)
- Valve type: Externally equalized Thermal Expansion Valve (TXV)
- Configuration: VLF — Valve Less Flange
- Externally equalized for accurate superheat control across multi-circuit evaporators
Application
Suitable for commercial refrigeration and HVAC systems utilizing R22 refrigerant at medium temperature ranges. The externally equalized design is particularly well-suited for evaporators with significant refrigerant-side pressure drop, ensuring stable and consistent superheat control throughout the operating range.
Why Choose the Copeland 054401?
- Precise superheat control protects compressor and maximizes system efficiency
- 5-foot capillary tube allows flexible remote bulb placement
- Externally equalized sensing eliminates superheat errors caused by evaporator pressure drop
- VLF configuration simplifies installation and replacement
- Backed by Copeland’s trusted engineering and quality standards
