Description

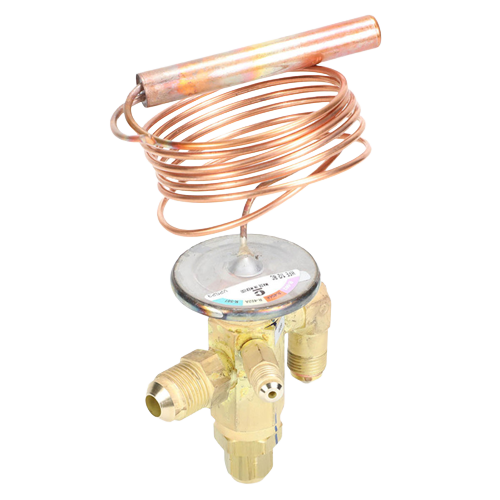

The Copeland 054967 is a precision-engineered Thermal Expansion Valve (TXV) designed for reliable refrigerant metering in medium-temperature refrigeration applications. Featuring an externally equalized design, this valve accurately compensates for pressure drop across the evaporator, ensuring consistent superheat control and optimal system efficiency.
Key Features
- Angle body configuration for flexible installation in tight or angled piping arrangements
- Externally equalized design for accurate superheat control across longer or higher-pressure-drop evaporators
- 5-foot capillary tube for remote bulb placement flexibility
- Flare connections for secure, leak-resistant field installation
- Rated for R502 refrigerant — ideal for medium-temperature commercial refrigeration systems
- 1/2-ton capacity to match small commercial and light-duty refrigeration loads
- Medium temperature charge optimized for typical medium-temp evaporator operating ranges
Specifications
- Model: HFE 1/2 RC 5FT 3/8 x 1/2 SAE ANG
- SKU: 054967
- Refrigerant: R502
- Capacity: 1/2 Ton
- Temperature Range: Medium Temperature Charge
- Inlet Connection: 3/8″ Flare
- Outlet Connection: 1/2″ Flare
- Body Style: Angle Body
- Capillary Tube Length: 5 Feet
- Equalization: External
Application
The Copeland 054967 TXV is suited for medium-temperature commercial refrigeration systems using R502 refrigerant. The externally equalized construction makes it the preferred choice for evaporators with significant pressure drop, ensuring stable superheat and preventing liquid floodback to the compressor. The angle body design simplifies installation where straight-through valve bodies are impractical.
