Description

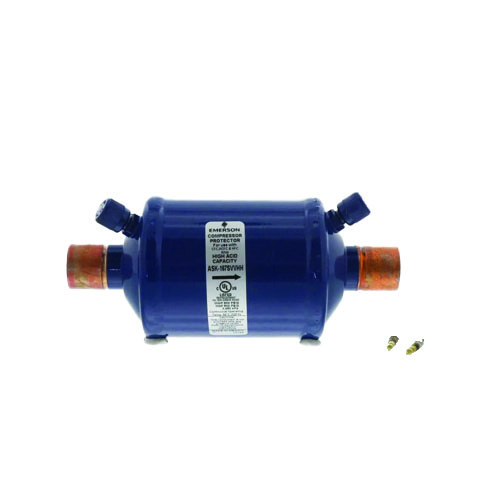

The Copeland ASK167SWHH (SKU 056510) is a high-performance suction line filter drier engineered to protect refrigeration and air conditioning systems from moisture, acid, and solid contaminants. Featuring a charcoal blend desiccant core, this drier goes beyond standard filtration by also adsorbing harmful acids and odor-causing compounds that can degrade compressor oil and damage system components.
Key Features
- 7/8″ sweat (ODF) connections for easy copper line installation
- 16 cubic inch internal volume for high desiccant capacity
- 40 micron filtration rating to capture particulates and debris
- 500 PSI maximum working pressure for reliable high-pressure system compatibility
- Charcoal blend desiccant core removes moisture, acid, and contaminants
- Designed for suction line installation to protect the compressor
- Ideal for use during system changeouts, burnout cleanups, and new installations
Product Specifications
- Brand: Copeland
- SKU: 056510
- Model: ASK167SWHH
- Connection Type: 7/8″ Sweat (ODF)
- Internal Volume: 16 cubic inches
- Filtration: 40 Micron
- Maximum Working Pressure: 500 PSI
- Desiccant Type: Charcoal Blend
- Application: Suction Line Filter Drier
Application & Benefits
The Copeland ASK167SWHH suction line filter drier is the ideal choice for HVAC/R technicians performing system cleanups after compressor burnouts or installing new refrigeration systems. The charcoal blend desiccant is specifically formulated to neutralize acids generated during burnout events, preventing re-contamination of the system and extending the life of the replacement compressor. The 40 micron filter screen captures metallic particles, carbon deposits, and other debris before they can reach and damage the new compressor. With a robust 500 PSI maximum working pressure rating, this filter drier is compatible with a wide range of refrigerants and system pressures found in modern commercial and residential HVAC/R equipment.
