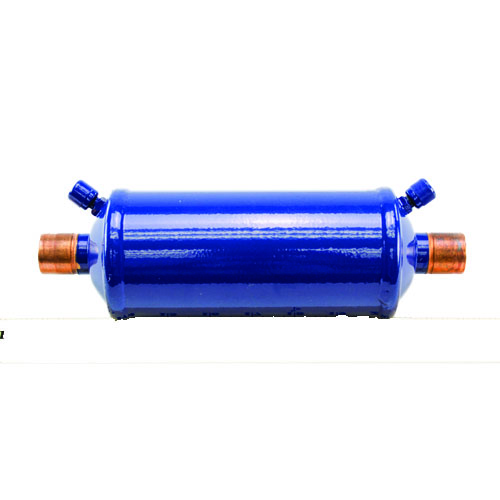

Copeland 056512 Suction Line Filter Drier 7/8″ Sweat, 30 Cu In, 40 Micron (ASK307SWHH)

Description

Copeland Suction Line Filter Drier with Charcoal Blend — Model ASK307SWHH

The Copeland ASK307SWHH (SKU 056512) is a high-performance suction line filter drier engineered to protect refrigeration and air conditioning systems from contaminants that can damage compressors and reduce system efficiency. Featuring a charcoal blend desiccant core, this filter drier is designed to remove moisture, acid, and particulates — including harmful residues from burnout situations — ensuring clean, dry refrigerant flow throughout the system.

Key Specifications

• Model: ASK307SWHH
• SKU: 056512
• Connection Type: 7/8″ Sweat (ODF)
• Volume: 30 Cubic Inches
• Filtration Rating: 40 Micron
• Maximum Working Pressure: 500 PSI
• Desiccant Blend: Charcoal Blend (ideal for burnout cleanup and acid removal)
• Application: Suction Line

Product Highlights

• Charcoal blend desiccant effectively neutralizes acid and removes burnout contaminants from the suction line
• 40-micron filtration captures fine particulates to safeguard compressor valves and components
• 500 PSI maximum working pressure suits a wide range of refrigerant systems
• 30 cubic inch shell provides ample desiccant capacity for thorough system cleanup
• 7/8″ sweat connections allow for clean, leak-free brazed installation
• Designed for use on the suction side of the refrigeration circuit to protect the compressor

Applications

• Post-burnout system cleanup and restoration
• Residential and commercial air conditioning systems
• Refrigeration systems requiring suction-side filtration and moisture control
• Systems where acid contamination is a concern
