Description

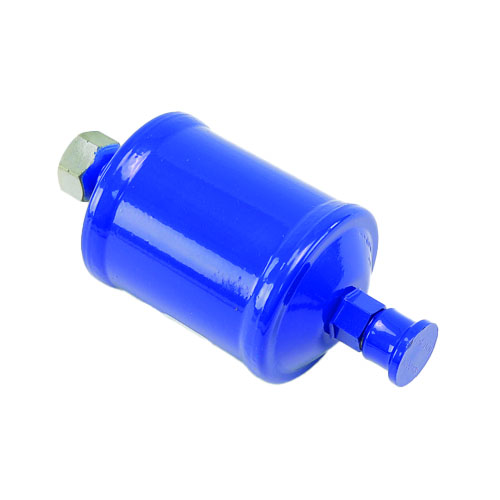

Copeland EK083FM Liquid Line Filter Drier — Model 056906
The Copeland EK083FM (SKU 056906) is a high-performance liquid line filter drier engineered to safeguard refrigeration and air conditioning systems from moisture, acid, and particulate contamination. Designed for demanding field and OEM applications, this filter drier delivers reliable protection that extends compressor life and maintains system efficiency.
Key Features
- 3/8″ Male Flare inlet x 3/8″ Female Flare outlet connections for easy in-line installation
- 8 cubic inch desiccant capacity for effective moisture and acid removal
- 20 micron filtration rating captures fine particulates and debris before they reach the expansion device or compressor
- 680 PSI maximum working pressure for use in high-pressure refrigerant systems
- Liquid line design — installs in the liquid line between the condenser and metering device
- Compatible with a wide range of common refrigerants
- Durable steel shell construction for long service life
Applications
- Residential and light commercial air conditioning systems
- Refrigeration systems requiring liquid line filtration and drying
- New installations and system changeouts or retrofits
- Post-burnout cleanup when used in conjunction with suction line filter driers
Specifications
- SKU: 056906
- Model: EK083FM
- Brand: Copeland
- Connection Type: Male Flare x Female Flare
- Connection Size: 3/8″
- Capacity: 8 cubic inches
- Filtration: 20 Micron
- Maximum Pressure: 680 PSI
- Application: Liquid Line
