Product Overview

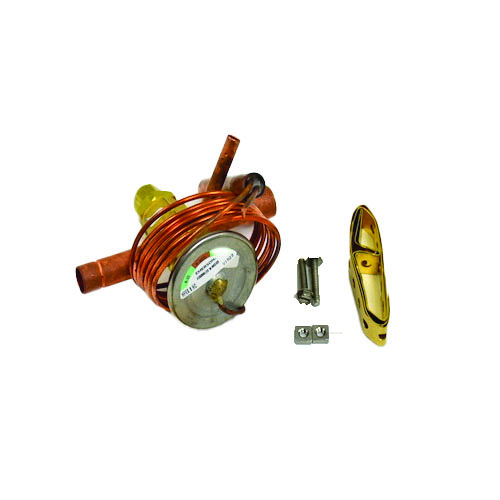

The Copeland 057312 (Model HFES 8 HCA 5FT 1/2 x 5/8 ODF S/T) is a high-performance, externally equalized thermal expansion valve (TXV) engineered for reliable refrigerant metering in medium-temperature commercial refrigeration and air conditioning applications. Designed for use with R-22 and R-407C refrigerants, this valve delivers precise superheat control at an 8-ton capacity, making it an ideal replacement or new-installation component for demanding HVAC/R systems.
Key Features
- 8-ton capacity rated for medium-temperature charge applications
- Compatible with R-22 and R-407C refrigerants
- Externally equalized design for accurate superheat control across longer evaporators or systems with significant pressure drop
- Straight body configuration for straightforward inline installation
- 1/2″ ODF inlet x 5/8″ ODF outlet sweat connections for secure, leak-free brazed joints
- 5-foot capillary tube provides installation flexibility and remote bulb placement
- Medium-temperature charge optimized for standard commercial cooling applications
Specifications
- SKU: 057312
- Model: HFES 8 HCA 5FT 1/2 x 5/8 ODF S/T
- Brand: Copeland
- Refrigerant Compatibility: R-22 / R-407C
- Capacity: 8 Ton
- Temperature Charge: Medium Temperature
- Equalization: External
- Body Style: Straight
- Inlet Connection: 1/2″ ODF Sweat
- Outlet Connection: 5/8″ ODF Sweat
- Capillary Tube Length: 5 Feet
Application
This TXV is well-suited for commercial air conditioning and refrigeration systems where precise refrigerant flow control is critical to system efficiency and equipment longevity. The external equalizer port connects to the evaporator outlet, compensating for pressure drop across the evaporator coil and ensuring consistent superheat regardless of load variations. The sweat (ODF) connections make it compatible with standard copper tubing used throughout the industry.
