Description

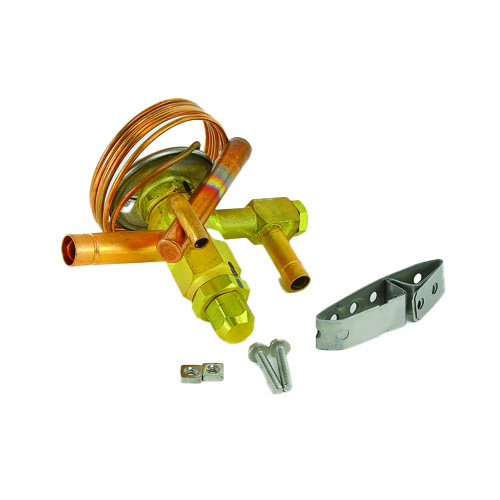

The Copeland 057410 (Model HFESC 1 HC 5FT 3/8 x 1/2 ODF ANG) is a precision-engineered, externally equalized thermal expansion valve designed for reliable refrigerant flow control in medium-temperature refrigeration and air conditioning applications. Built to handle both R22 and R407C refrigerants at a 1-ton capacity, this TXV delivers consistent superheat control and system efficiency across a wide range of operating conditions.
Key Features
- Externally equalized design for accurate superheat control across longer evaporator circuits
- Compatible with R22 and R407C refrigerants
- 1-ton nominal capacity rating
- Medium temperature charge for optimized performance in medium-temp applications
- Angle body configuration for flexible installation in tight spaces
- 5-foot capillary tube for remote bulb sensing flexibility
- Built-in inlet strainer to protect valve internals from debris and contaminants
Connection Specifications
- Inlet connection: 3/8″ ODF sweat
- Outlet connection: 1/2″ ODF sweat
- Connection type: Sweat (solder)
- Body style: Angle
Application
The Copeland 057410 TXV is ideal for use in split-system air conditioners, refrigeration systems, and heat pumps operating on R22 or the environmentally preferred R407C refrigerant. The externally equalized port ensures accurate pressure referencing at the evaporator outlet, making this valve well-suited for evaporators with significant pressure drop. The integrated inlet strainer provides an added layer of system protection, reducing the risk of valve fouling and extending service life.
Product Details
- Brand: Copeland
- SKU: 057410
- Model: HFESC 1 HC 5FT 3/8 x 1/2 ODF ANG
- Refrigerant: R22 / R407C
- Capacity: 1 Ton
- Temperature Charge: Medium
- Equalization: External
- Capillary Tube Length: 5 Feet
- Inlet Size: 3/8″ ODF Sweat
- Outlet Size: 1/2″ ODF Sweat
- Body Orientation: Angle
- Inlet Strainer: Included
