Description

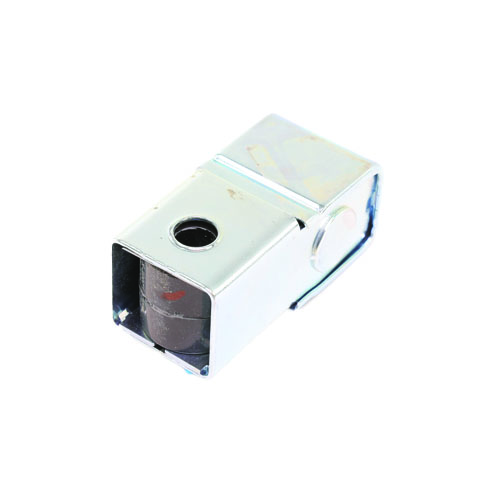

Copeland 057671 Replacement Coil — Model AHG
The Copeland 057671 is a precision-engineered replacement coil designed for use with Copeland AHG model valve assemblies. Rated at 208–240 VAC and 60 Hz with a 12-watt power draw, this coil delivers reliable electromagnetic performance in demanding HVAC and refrigeration applications. Its Class H insulation rating ensures exceptional thermal endurance, making it well-suited for high-temperature operating environments where standard coils may fall short.
Key Features
- Operating Voltage: 208–240 VAC
- Frequency: 60 Hz
- Power Consumption: 12 Watts
- Insulation Class: Class H (rated for high-temperature service)
- Includes integrated junction box for secure, code-compliant wiring connections
- 6″ pre-attached leads for easy installation and field wiring
- Compatible with Copeland AHG model valve series
- Genuine Copeland OEM replacement part
Why Class H Insulation?
Class H insulation is rated for continuous operation at temperatures up to 180°C (356°F), providing superior protection against thermal degradation in high-cycle or high-ambient environments. This makes the Copeland 057671 an ideal choice for commercial refrigeration systems, rooftop units, and other demanding HVAC applications.
Installation Notes
The included junction box simplifies field wiring by providing a protected termination point, reducing exposure of wire connections to moisture and contaminants. The 6″ leads offer sufficient slack for a clean, professional installation without the need for additional wire extensions in most applications. Always verify compatibility with your specific valve model before installation.
