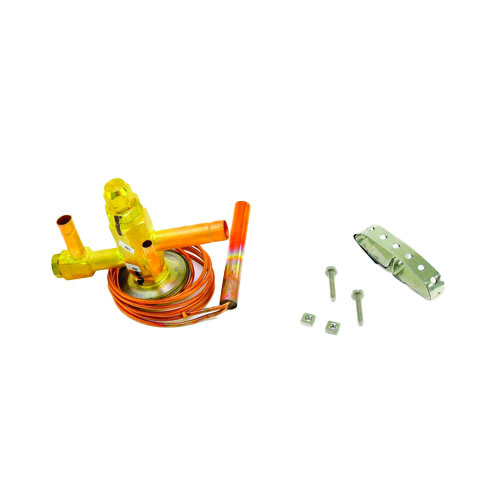

Copeland 058135 1-Ton Med Temp Ext. Equalized TXV, 3/8″ x 1/2″ Sweat, 5′ Cap Tube

Description

Product Overview

The Copeland 058135 (HFESC 1 SC 5FT 3/8×1/2 ODF ANG) is a precision-engineered Thermal Expansion Valve (TXV) designed for medium-temperature refrigeration applications. Rated at 1-ton capacity, this externally equalized valve delivers accurate refrigerant metering for consistent system performance and energy efficiency. The 5-foot capillary tube provides flexible bulb placement, while the 3/8″ x 1/2″ ODF sweat connections ensure straightforward installation into existing copper line sets.

Refrigerant Compatibility

This TXV is factory-charged and compatible with a wide range of modern and legacy HFC/HFO refrigerants, making it an excellent choice for new installations and retrofit projects alike:

• R507
• R502
• R404A
• R448A
• R449A

Key Features

• 1-Ton medium-temperature capacity charge
• Externally equalized design for accurate superheat control in systems with significant pressure drop across the evaporator
• 3/8″ inlet x 1/2″ outlet ODF sweat connections
• 5-foot capillary tube for flexible remote bulb positioning
• Angular body configuration (ANG) for versatile installation orientations
• Compatible with R507, R502, R404A, R448A, and R449A refrigerants
• Copeland quality construction for long-term reliability

Application

Ideal for medium-temperature commercial refrigeration systems including walk-in coolers, reach-in display cases, and other evaporator-based refrigeration equipment. The external equalizer port ensures accurate superheat control even in evaporators with distributor assemblies or significant internal pressure drops, protecting the compressor from liquid slugging while maximizing evaporator efficiency.

Part Information

• Brand: Copeland
• SKU / Part Number: 058135
• Model: HFESC 1 SC 5FT 3/8×1/2 ODF ANG
• Capacity: 1 Ton
• Temperature Range: Medium Temperature
• Equalization: External
• Connections: 3/8″ x 1/2″ ODF Sweat
• Capillary Tube Length: 5 Feet
