Description

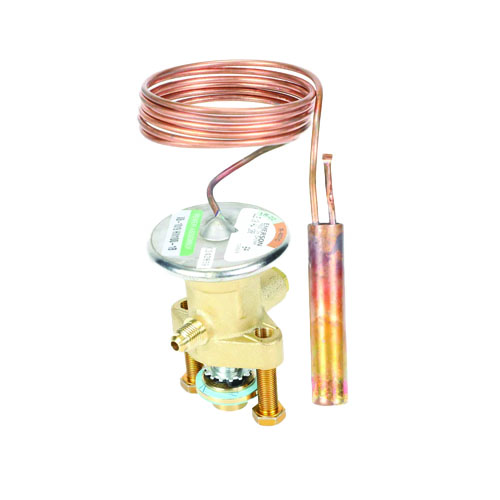

The Copeland 059076 (model TCLE 10 HW100) is a precision-engineered Thermal Expansion Valve (TXV) designed for demanding commercial refrigeration and air conditioning applications. Built without a flange for flexible installation, this externally equalized valve delivers accurate refrigerant metering for consistent system performance.
Key Features
- 10-Ton capacity for large commercial HVAC and refrigeration systems
- Designed for R22 refrigerant — ideal for legacy and existing system service
- Medium temperature charge for reliable operation across standard refrigeration temperature ranges
- SAE external connections for compatibility with standard industry fittings
- 5-foot (5 ft) capillary tube length for flexible remote bulb placement
- Externally equalized design compensates for pressure drop across the evaporator, ensuring accurate superheat control
- TXV less flange configuration for streamlined installation in tight spaces
Product Specifications
- SKU: 059076
- Model: TCLE 10 HW100
- Capacity: 10 Tons
- Refrigerant: R22
- Temperature Charge: Medium Temperature
- Connection Type: SAE External
- Capillary Tube Length: 5 Feet (FT)
- Equalization: Externally Equalized
- Flange: Less Flange (No Flange)
Applications
- Commercial refrigeration systems using R22 refrigerant
- Medium-temperature evaporator coil applications
- Replacement TXV for large-capacity legacy HVAC and refrigeration equipment
- Systems requiring precise superheat control at the evaporator outlet
The externally equalized design of the Copeland 059076 TXV makes it the preferred choice for evaporators with significant pressure drop, ensuring the expansion valve responds to true evaporator outlet conditions rather than inlet pressure alone. This results in optimized system efficiency, reduced compressor cycling, and extended equipment life. The 5-foot capillary tube provides installation flexibility for remote bulb sensing in a variety of equipment configurations.
