Description

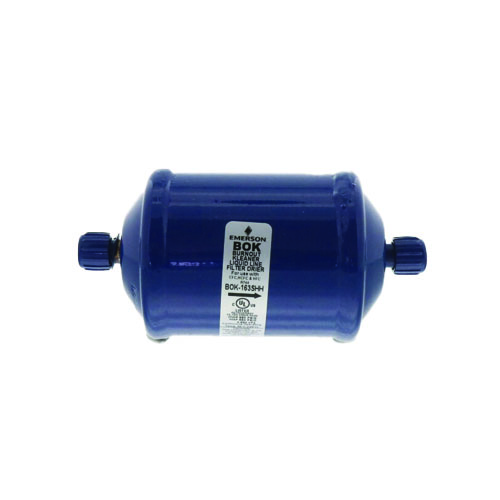

Copeland Liquid Line Burnout Filter Drier — Model BOK163SHH
The Copeland BOK163SHH (SKU 060242) is a heavy-duty liquid line burnout filter drier engineered to protect refrigeration and air conditioning systems following a compressor burnout event. Designed to remove acid, moisture, and solid contaminants from the refrigerant circuit, this drier helps restore system cleanliness and extend the service life of replacement compressors.
Key Specifications
- Model Number: BOK163SHH
- SKU: 060242
- Connection Size: 3/8″ ODF (Sweat)
- Drier Volume: 16 cubic inches
- Filtration Rating: 40 Micron
- Maximum Working Pressure: 680 PSI
- Application: Liquid Line Burnout Filter Drier
Features & Benefits
- Burnout-rated desiccant core aggressively captures acid and contaminants left behind after a compressor failure
- 40-micron filtration removes solid particles and debris to protect downstream components
- 16 cubic inch capacity provides high desiccant volume for thorough system cleanup
- 3/8″ ODF sweat connections allow for fast, reliable installation with standard copper tubing
- 680 PSI maximum working pressure suits a wide range of refrigerant applications
- Engineered by Copeland, a trusted name in refrigeration and HVAC components
Application
The BOK163SHH is ideal for use during system cleanup procedures following a compressor burnout. It is installed in the liquid line to capture acid, moisture, and particulate contamination before they can damage a new compressor. Suitable for use in commercial refrigeration and air conditioning systems where reliable cleanup performance is critical.
Installation Notes
- Install in the liquid line as directed by system cleanup procedures
- Sweat (braze) 3/8″ ODF connections to copper tubing using standard refrigeration brazing techniques
- Monitor system acid levels and replace drier as needed until the system tests clean
- Always follow applicable refrigerant handling regulations and safety procedures during installation
