Description

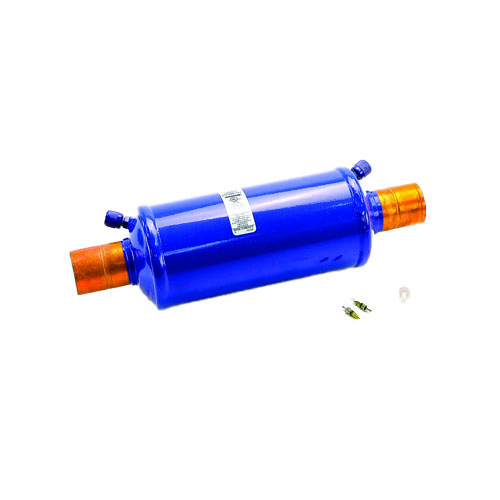

The Copeland SFD54S11VV (SKU 060253) is a heavy-duty suction line filter drier engineered to safeguard refrigeration and air conditioning compressors from moisture, acid, and particulate contamination. With a generous 54 cubic inch capacity and a 40-micron filtration rating, this unit delivers reliable, long-service protection in demanding commercial and industrial HVAC/R applications.
Key Features
- 1-3/8″ ODF (sweat) connections for secure, leak-free installation
- 54 cubic inch internal volume for high-capacity moisture and acid absorption
- 40-micron filtration rating captures particulates, protecting compressor components
- 500 PSI maximum working pressure for use with a wide range of refrigerants
- Suction line design — ideal for system cleanup after compressor burnout or contamination events
- Durable steel shell construction built for long-term field reliability
Specifications
- Brand: Copeland
- SKU / Part Number: 060253
- Model: SFD54S11VV
- Connection Type: ODF Sweat (Solder)
- Connection Size: 1-3/8″
- Internal Volume: 54 cubic inches
- Filtration Rating: 40 Micron
- Maximum Working Pressure: 500 PSI
- Application: Suction Line
Application & Installation
The Copeland SFD54S11VV suction line filter drier is installed on the suction side of the refrigerant circuit, between the evaporator and the compressor. It is particularly well-suited for post-burnout cleanup procedures, where it removes acid, carbon, and debris generated by a failed compressor — preventing recontamination of the replacement unit. The 1-3/8″ ODF sweat connections allow for straightforward brazing into existing copper suction line piping. Always follow proper refrigerant handling procedures and manufacturer guidelines during installation.
