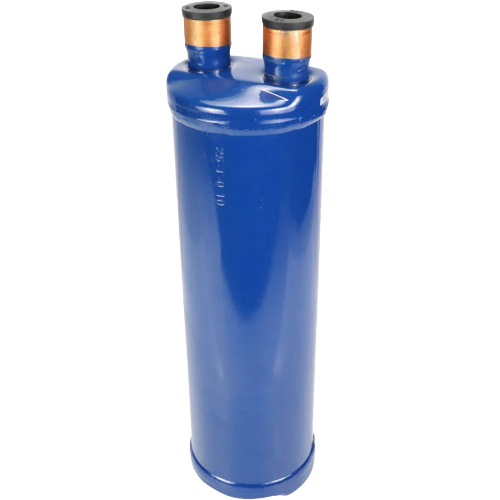

Copeland 060816 Suction Accumulator, 1-3/8″ Sweat, 300 PSI, 5″ x 17″ (A-AS51711)

Description

Copeland Suction Accumulator — Model A-AS51711

The Copeland 060816 Suction Accumulator (Model A-AS51711) is a heavy-duty refrigeration component engineered to protect compressors from liquid slugging. By capturing and metering liquid refrigerant and oil back into the suction line at a controlled rate, this accumulator extends compressor life and maintains system efficiency in demanding HVAC and refrigeration applications.

Key Specifications

• SKU: 060816
• Model: A-AS51711
• Connection Type: 1-3/8″ Sweat (ODF)
• Maximum Working Pressure: 300 PSI
• Body Diameter: 5″
• Overall Height: 17″
• Brand: Copeland

Features & Benefits

• Protects compressors from liquid refrigerant and oil slugging
• Rated to 300 PSI maximum working pressure for reliable high-pressure system performance
• 1-3/8″ sweat connections for straightforward field installation
• Robust steel construction designed for long service life
• Compact 5″ diameter body with 17″ height fits standard equipment clearances
• Compatible with a wide range of refrigerants used in commercial HVAC and refrigeration systems

Applications

• Commercial refrigeration systems
• Air conditioning and heat pump systems
• Systems subject to liquid refrigerant flood-back conditions
• Installations requiring compressor protection during off-cycle migration
