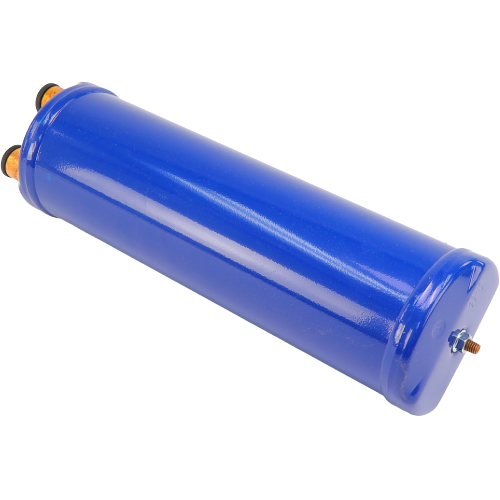

Copeland 060817 Suction Accumulator, 1-1/8″ Sweat, 300 PSI, 5″ Dia x 17″ H (A-AS5179)

Description

The Copeland 060817 Suction Accumulator (Model A-AS5179) is a robust refrigeration component engineered to protect compressors from liquid slugging and oil carryover. Designed for demanding HVAC and refrigeration applications, this accumulator intercepts liquid refrigerant and oil before they can enter the compressor suction port, extending compressor life and maintaining system efficiency.

Key Features

• Model: A-AS5179
• Connection type: 1-1/8″ sweat (copper brazed)
• Maximum working pressure: 300 PSI
• Body diameter: 5″
• Overall height: 17″
• Designed to prevent liquid refrigerant slugging at compressor suction
• Traps and meters oil back to the compressor to maintain proper lubrication
• Durable steel shell construction for long service life

Application

This suction accumulator is ideal for use in split systems, heat pumps, refrigeration systems, and any application where liquid refrigerant migration or oil carryover poses a risk to compressor integrity. The 1-1/8″ sweat connection allows for clean, leak-free brazed installation in copper line sets.

Specifications

• SKU: 060817
• Manufacturer Model: A-AS5179
• Inlet/Outlet Connection: 1-1/8″ Sweat (ODF)
• Max Working Pressure: 300 PSI
• Shell Diameter: 5″
• Overall Height: 17″
• Brand: Copeland
