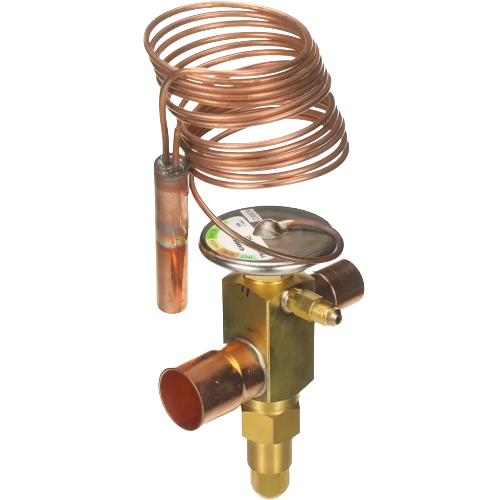

Copeland 062721 15 Ton R22/R407C Medium Temp TXV, 7/8″ x 1-1/8″ ODF, 10′ Cap Tube

Description

Overview

The Copeland 062721 is a heavy-duty Thermal Expansion Valve (TXV) engineered for 15-ton medium-temperature refrigeration and air conditioning applications. Designed for use with R22 and R407C refrigerants, this straight-body valve delivers precise refrigerant metering to maximize system efficiency and protect compressor performance across a wide range of operating conditions.

Key Features

• 15-ton capacity rated for medium-temperature applications
• Compatible with R22 and R407C refrigerants
• Straight body design for streamlined installation
• 7/8″ x 1-1/8″ ODF sweat (solder) connections for reliable, leak-free joints
• 10-foot capillary tube for flexible bulb placement and accurate superheat sensing
• 1/4″ SAE (flare) external equalizer connection for improved performance in systems with significant pressure drop across the evaporator
• External equalizer design ensures accurate superheat control regardless of distributor or evaporator pressure drop

Specifications

• SKU: 062721
• Model: TRAE+ 15 HC 10FT 7/8 x 1 1/8 ODF S/T
• Capacity: 15 Ton
• Temperature Range: Medium Temperature
• Refrigerant: R22 / R407C
• Body Style: Straight Body
• Inlet Connection: 7/8″ ODF Sweat
• Outlet Connection: 1-1/8″ ODF Sweat
• Capillary Tube Length: 10 Feet
• Equalizer Type: External
• Equalizer Connection: 1/4″ SAE Flare

Application

Ideal for commercial refrigeration systems, large split systems, and chiller applications operating on R22 or R407C refrigerant. The external equalizer port makes this TXV especially well-suited for multi-circuit evaporators and systems with refrigerant distributors where evaporator pressure drop must be accounted for in superheat control.
