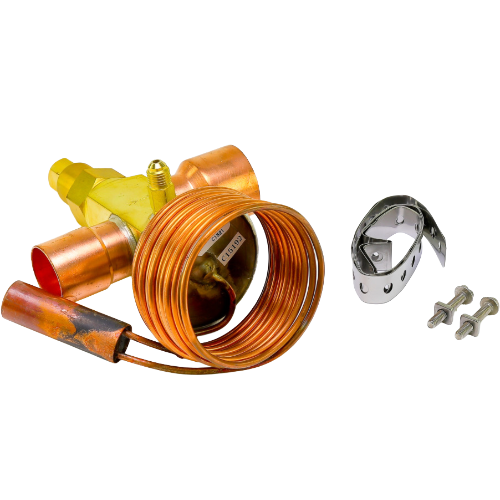

Copeland 062734 40-Ton R22/R407C Externally Equalized TXV, 1-1/8″ x 1-3/8″ Sweat

Description

The Copeland 062734 is a heavy-duty, externally equalized thermal expansion valve (TXV) engineered for large-capacity heat pump systems. Rated at 40 tons and compatible with R22 and R407C refrigerants, this valve delivers precise refrigerant metering to maximize system efficiency and protect the compressor under varying load conditions.

Key Features

• 40-ton capacity rating for large commercial heat pump applications
• Compatible with R22 and R407C refrigerants (heat pump charge)
• Externally equalized design for accurate superheat control across long evaporator circuits
• Straight body configuration for straightforward in-line installation
• 1-1/8″ inlet x 1-3/8″ outlet ODF sweat connections for secure, leak-free brazed joints
• 10-foot capillary tube for flexible remote bulb placement

Specifications

• SKU / Part Number: 062734
• Model: TRAE+ 40 HCA 10FT 1 1/8 X 1 3/8 ODF S/T
• Brand: Copeland
• Refrigerant Compatibility: R22 / R407C
• Charge Type: Heat Pump
• Capacity: 40 Ton
• Body Style: Straight
• Connection Type: ODF Sweat (Solder)
• Inlet Connection Size: 1-1/8″
• Outlet Connection Size: 1-3/8″
• Capillary Tube Length: 10 Feet
• Equalization: External

Application

Designed for use in commercial and industrial heat pump systems, the Copeland 062734 TXV is ideal for installations requiring precise superheat management at high tonnage. The external equalizer port compensates for pressure drop across the evaporator, making this valve well-suited for multi-circuit or distributor-fed evaporator coils. The 10-foot capillary tube provides ample reach for remote bulb mounting at the suction line exit of the evaporator.
