Description

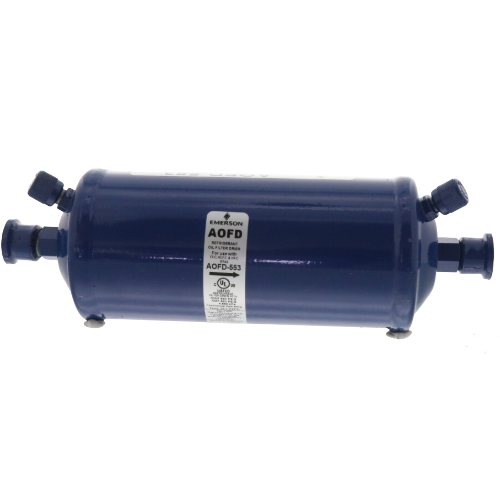

The Copeland AOFD553 (SKU 062829) is a high-performance oil filter drier engineered to protect refrigeration and HVAC compressor systems from harmful contaminants in the oil circuit. Featuring a 3/8″ male flare connection and a robust 680 PSI maximum working pressure rating, this filter drier is built for demanding commercial and industrial refrigeration applications.
Key Features
- 3/8″ male flare inlet/outlet connections for easy in-line installation
- 680 PSI maximum working pressure for high-pressure system compatibility
- 3 micron filtration rating removes fine particulates, acids, and moisture from compressor oil
- Dual access valves allow for convenient service, sampling, and pressure testing without system shutdown
- Designed to extend compressor life by keeping the oil circuit clean and dry
- Compatible with a wide range of refrigerants used in commercial refrigeration and HVAC systems
Why Use an Oil Filter Drier?
Contaminants such as metal particles, moisture, and acid byproducts in compressor oil are leading causes of premature compressor failure. The Copeland AOFD553 oil filter drier intercepts these contaminants before they can cause wear on bearings, pistons, and other critical compressor components. The integrated dual access valves make it easy for technicians to monitor system conditions and perform maintenance without fully isolating the circuit.
Specifications
- Brand: Copeland
- Model: AOFD553
- SKU: 062829
- Connection Type: 3/8″ Male Flare
- Maximum Working Pressure: 680 PSI
- Filtration Rating: 3 Micron
- Valve Configuration: Dual Access Valves
- Application: Oil line filtration for refrigeration and HVAC compressors
