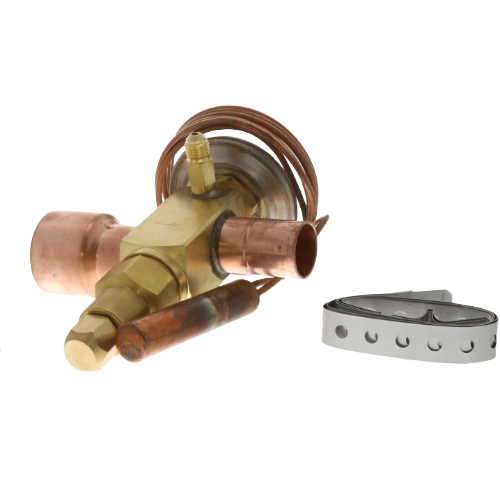

Copeland 063425 Externally Equalized TXV, R22/R407C, 30 Ton, 7/8″ x 1-3/8″ Sweat

Description

The Copeland 063425 (Model TRAE+ 30 HW100 5FT 7/8 X 1 3/8 ODF S/T) is a heavy-duty, externally equalized thermal expansion valve engineered for large-capacity commercial refrigeration and air conditioning systems. Designed for use with R22 and R407C refrigerants, this straight-body TXV delivers precise superheat control and reliable performance in demanding 30-ton applications.

Key Features

• Externally equalized design for accurate superheat control across long evaporator circuits
• Compatible with R22 and R407C refrigerants
• 30-ton system capacity rating for large commercial applications
• MOP (Maximum Operating Pressure) charge rated at 100 PSI for compressor protection
• 5-foot capillary tube for flexible remote bulb placement
• Straight body configuration for straightforward inline installation
• 7/8″ ODF sweat inlet connection
• 1-3/8″ ODF sweat outlet connection

Specifications

• SKU: 063425
• Model: TRAE+ 30 HW100 5FT 7/8 X 1 3/8 ODF S/T
• Refrigerant Compatibility: R22 / R407C
• Capacity: 30 Ton
• MOP Charge: 100 PSI
• Capillary Tube Length: 5 Feet
• Body Style: Straight
• Equalization: External
• Inlet Connection: 7/8″ ODF Sweat
• Outlet Connection: 1-3/8″ ODF Sweat
• Connection Type: Sweat (Solder)

Application
