Description

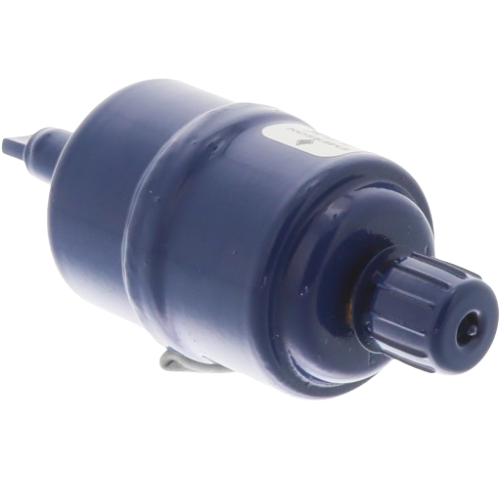

The Copeland 063496 (Model ADK033/2) is a high-performance liquid line filter drier engineered to protect refrigeration and air conditioning systems from moisture, acid, and particulate contamination. Featuring flare-style SAE connections for easy field installation, this compact drier is well suited for residential and light commercial HVAC/R applications.
Key Features
- 3/8″ SAE (Flare) inlet connection for secure, leak-free installation
- 1/4″ SAE (Flare) outlet connection
- 3 cubic inch desiccant capacity for effective moisture and acid removal
- 40 micron filtration rating removes harmful particulates from the refrigerant circuit
- 680 PSI maximum working pressure for reliable high-pressure system compatibility
- Liquid line design protects compressors, expansion valves, and other downstream components
- Compact form factor for easy installation in tight spaces
Specifications
- Model: ADK033/2
- SKU: 063496
- Inlet Connection: 3/8″ SAE Flare
- Outlet Connection: 1/4″ SAE Flare
- Volume: 3 cubic inches
- Filtration: 40 Micron
- Maximum Pressure: 680 PSI
- Application: Liquid Line
Application
The Copeland ADK033/2 liquid line filter drier is ideal for use in residential and commercial split systems, heat pumps, and refrigeration equipment. Installing a quality filter drier on the liquid line is a critical best practice during new installations, system changeouts, or after any compressor burnout to ensure long-term system reliability and efficiency.
