Description

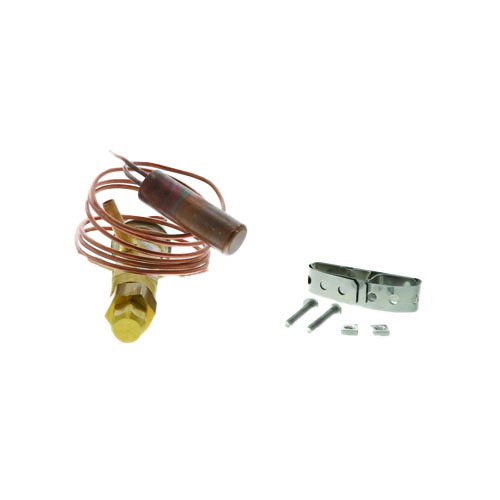

Copeland TFES 12 ZAA Thermal Expansion Valve Overview
The Copeland 066146 (Model TFES 12 ZAA 5/8 X7/8 ODF S/T) is a high-performance, externally equalized thermal expansion valve engineered for R410A refrigerant systems. Featuring a straight body design with a 5-foot capillary tube and wide range charge, this TXV delivers precise refrigerant metering and reliable superheat control across a broad range of operating conditions — making it an ideal choice for residential and light commercial air conditioning and heat pump applications.
Key Features
- Refrigerant: R410A compatible
- Capacity: 1–2 Ton
- Inlet Connection: 5/8″ ODF Sweat (Liquid Line)
- Outlet Connection: 7/8″ ODF Sweat (Suction Line)
- Body Style: Straight body
- Capillary Tube Length: 5 feet
- Charge Type: Wide range charge for broad superheat control
- Equalization: Externally equalized for accurate pressure sensing across the evaporator
- Connection Type: Sweat (solder) connections
- Model Number: TFES 12 ZAA 5/8 X7/8 ODF S/T
- SKU: 066146
Why External Equalization Matters
Externally equalized TXVs reference suction pressure at the evaporator outlet rather than the inlet, compensating for pressure drop across the evaporator coil. This results in more stable superheat control, improved system efficiency, and better protection of the compressor — especially in systems with distributor assemblies or longer evaporator circuits.
Wide Range Charge Advantage
The wide range charge allows this valve to maintain consistent superheat control over a wider range of evaporating temperatures and load conditions. This versatility makes the Copeland TFES 12 ZAA suitable for variable-load applications where operating conditions may fluctuate significantly.
Application
- R410A residential and light commercial split systems
- Air conditioning and heat pump evaporator coil assemblies
- Replacement or retrofit TXV installations requiring 5/8″ x 7/8″ sweat connections
- Systems requiring externally equalized superheat control
Installation Notes
Install the sensing bulb firmly on the suction line at the evaporator outlet for accurate superheat sensing. Use proper brazing techniques on all sweat connections and ensure the external equalizer line is connected to the suction line downstream of the bulb location. Always follow Copeland and system manufacturer guidelines for TXV installation and superheat adjustment.
