Description

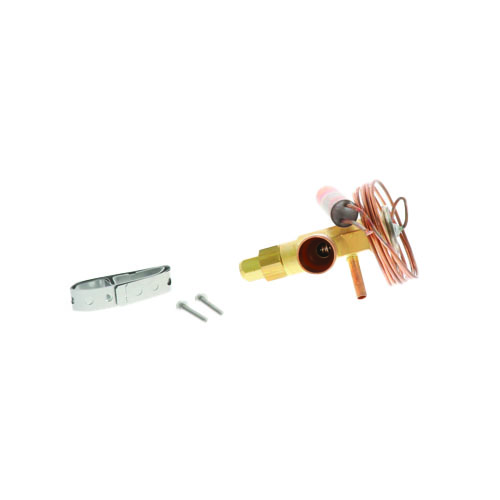

The Copeland TFES-Series Thermal Expansion Valve (TXV) — model TFES 20 ZAA 5FT 5/8X7/8 ODF S/T — is a precision-engineered refrigerant metering device designed for high-capacity R410A HVAC systems. Built with a straight body configuration and a 5-foot capillary tube, this valve delivers reliable, responsive refrigerant flow control in demanding commercial applications up to 20 tons of capacity.
The externally equalized design ensures accurate superheat control even in systems with significant pressure drop across the evaporator, making it ideal for larger coils and multi-circuit evaporators. The wide range charge provides a broad operating envelope, accommodating variable load conditions without sacrificing efficiency or stability.
Key Features
- TFES-Series straight body thermal expansion valve
- Refrigerant: R410A compatible
- Capacity: 20 Ton
- Inlet connection: 5/8″ ODF (sweat)
- Outlet connection: 7/8″ ODF (sweat)
- Capillary tube length: 5 feet
- Wide range charge for broad operating flexibility
- Externally equalized for precise superheat control on large evaporators
- Straight body design for simplified installation
Application
The Copeland TFES 20 ZAA TXV is suited for commercial split systems, rooftop units, and other large-tonnage R410A refrigeration and air conditioning systems where accurate refrigerant metering and stable superheat control are critical to system performance and efficiency.
Specifications
- SKU: 066152
- Model: TFES 20 ZAA 5FT 5/8X7/8 ODF S/T
- Series: TFES
- Refrigerant: R410A
- Capacity: 20 Ton
- Body Style: Straight
- Inlet Size: 5/8″ ODF Sweat
- Outlet Size: 7/8″ ODF Sweat
- Capillary Tube: 5 ft
- Charge Type: Wide Range
- Equalization: External
- Brand: Copeland
