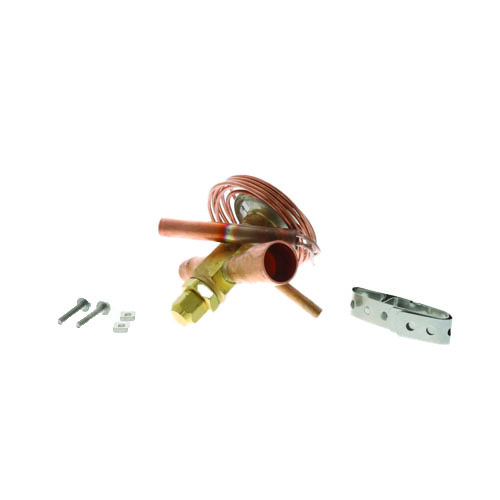

Copeland 066538 10-Ton R404A/R507/R502 Externally Equalized TXV, 5/8″ x 7/8″ Sweat

Description

Overview

The Copeland 066538 (Model HFES 10 SC 5FT 5/8 x 7/8 ODF S/T) is a heavy-duty, externally equalized Thermal Expansion Valve (TXV) engineered for reliable refrigerant metering in medium-temperature commercial refrigeration systems. With a 10-ton capacity rating and compatibility with R404A, R507, and R502 refrigerants, this valve delivers precise superheat control to protect compressors and maximize system efficiency.

Key Features

• 10-Ton capacity rating for commercial-scale refrigeration applications
• Compatible refrigerants: R404A, R507, and R502
• Medium temperature charge for reliable operation across typical commercial refrigeration temperature ranges
• Externally equalized design compensates for pressure drop across the evaporator, ensuring accurate superheat control
• Straight body configuration for straightforward inline installation
• 5/8″ x 7/8″ ODF sweat connections for secure, leak-free brazed joints
• 5-foot capillary tube provides flexible bulb placement for optimal sensing
• Sweat (solder) end connections for compatibility with standard copper tubing

Application

Designed for medium-temperature commercial refrigeration systems including walk-in coolers, reach-in cases, and display cases. The external equalizer port makes this TXV ideal for evaporators with significant refrigerant-side pressure drop, ensuring consistent superheat control even under variable load conditions.

Specifications

• SKU: 066538
• Model: HFES 10 SC 5FT 5/8 x 7/8 ODF S/T
• Brand: Copeland
• Capacity: 10 Ton
• Refrigerant: R404A / R507 / R502
• Temperature Charge: Medium Temperature
• Equalization: External
• Body Style: Straight
• Connection Type: Sweat (ODF)
• Inlet Connection: 5/8″ ODF
• Outlet Connection: 7/8″ ODF
• Capillary Tube Length: 5 Feet
