Copeland 089943 TXV R22/R407C 3-Ton, MOP 100 PSI, 5′ Cap Tube, 1/4″ SAE

Description

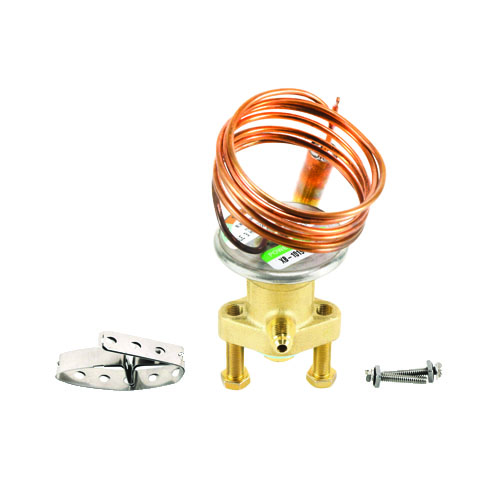

Copeland 089943 Thermal Expansion Valve (TXV) Overview

The Copeland 089943 is a precision-engineered Thermal Expansion Valve (TXV) designed to deliver reliable refrigerant metering in R22 and R407C systems. Engineered without a flange (model TCLE 3 HW 100 5FT VLF), this valve is a trusted solution for residential and light commercial HVAC applications requiring accurate superheat control and system efficiency.

Key Features

• Compatible refrigerants: R22 and R407C
• Nominal cooling capacity: 3 Ton
• Maximum Operating Pressure (MOP): 100 PSI charge
• Capillary tube length: 5 feet for flexible installation routing
• Connection type: 1/4″ SAE (Flare) — industry-standard, leak-resistant connection
• Externally equalized design for accurate superheat sensing across longer evaporator coils
• No-flange body design (VLF) for streamlined installation in space-constrained applications
• OEM model number: TCLE 3 HW 100 5FT VLF

Technical Specifications

• SKU: 089943
• Refrigerant: R22 / R407C
• Capacity: 3 Ton
• MOP Charge: 100 PSI
• Capillary Tube Length: 5 Feet
• Inlet/Outlet Connection: 1/4″ SAE Flare
• Equalization Type: External
• Flange: None (VLF — Without Flange)
• Valve Type: Thermal Expansion Valve (TXV)

Application & Benefits

The external equalizer port ensures accurate superheat control even in systems with significant pressure drop across the evaporator, making this TXV ideal for multi-circuit or longer evaporator coil configurations. The 5-foot capillary tube provides installation flexibility, allowing the sensing bulb to be positioned precisely at the evaporator outlet. The 1/4″ SAE flare connection simplifies field installation and ensures a secure, leak-free seal. Dual refrigerant compatibility with R22 and R407C makes this valve a versatile choice for both legacy systems and R407C retrofit applications.
