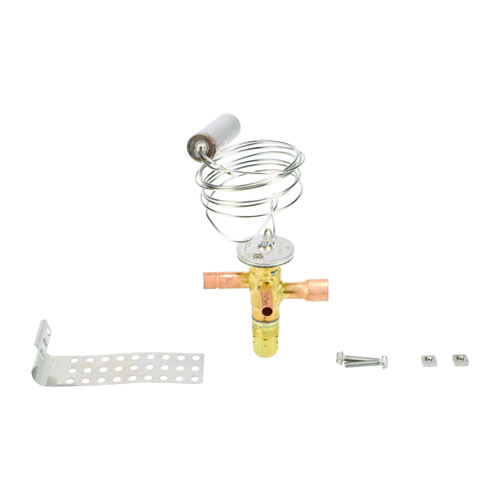

Copeland 091024 NXT Series R410A 4-Ton TXV, 3/8″ x 1/2″ ODF, 5′ Cap Tube

Description

Copeland NXT Series Thermal Expansion Valve — Overview

The Copeland 091024 is a high-performance NXT Series Thermal Expansion Valve (TXV) engineered for reliable refrigerant metering in R410A residential and light commercial cooling systems. With a rated capacity of 4 tons and a straight-through body design, this valve delivers precise superheat control and consistent system efficiency across a wide range of operating conditions.

Key Features

• Refrigerant: R410A compatible
• Capacity: 4 Ton
• Inlet connection: 3/8″ ODF (Sweat)
• Outlet connection: 1/2″ ODF (Sweat)
• Capillary tube length: 5 feet
• Adjustable superheat setting for flexible field tuning
• Integrated check valve for reverse-cycle (heat pump) applications
• Straight-through body design for simplified installation and reduced pressure drop
• 1/4″ ODF external equalizer port for accurate superheat sensing in longer evaporator circuits
• NXT Series platform — Copeland’s next-generation TXV line

Technical Specifications

• Model / Part Number: 091024
• OEM Part Reference: NAE 4 ZAA 5FT 3/8×1/2 ODF S/T
• Refrigerant: R410A
• Nominal Capacity: 4 Ton
• Inlet (Liquid Line): 3/8″ ODF Sweat
• Outlet (Suction/Evaporator): 1/2″ ODF Sweat
• External Equalizer: 1/4″ ODF
• Capillary Tube: 5 ft
• Superheat: Adjustable
• Body Style: Straight Through
• Check Valve: Included (integral)
• Series: NXT

Application & Installation Notes

The straight-through body configuration makes the Copeland 091024 an ideal drop-in replacement or new-installation TXV for split-system air conditioners and heat pumps using R410A refrigerant. The adjustable superheat feature allows technicians to fine-tune evaporator performance on-site, while the built-in check valve enables bidirectional flow — making this valve well-suited for heat pump systems. The 1/4″ ODF external equalizer connection ensures accurate superheat control even in evaporator coils with higher pressure drops. The 5-foot capillary tube provides ample routing flexibility during installation.
