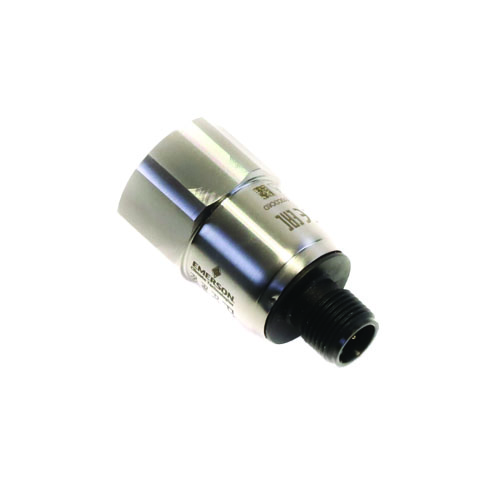

Copeland 097753 0-435 PSI 4-20mA Pressure Transmitter PT5-30M with Schrader Valve

Description

The Copeland 097753 Pressure Transmitter (Model PT5-30M, Reference Number 802352) is a precision-engineered sensing device designed for demanding HVAC and refrigeration system monitoring applications. Delivering accurate, continuous pressure data via a standard 4-20mA analog output signal, this transmitter integrates seamlessly into building automation systems, compressor monitoring circuits, and commercial refrigeration controls.

Key Features

• Pressure range: 0–435 PSI for broad refrigeration and HVAC system compatibility
• 4-20mA output signal for reliable, noise-resistant analog transmission over long wire runs
• 7/16″-20 pressure port connection for secure, leak-free installation
• Integrated Schrader valve opener allows connection without refrigerant loss or system shutdown
• Copeland model number PT5-30M (Reference Number 802352)
• SKU: 097753

Application

This transmitter is ideal for monitoring suction and discharge pressures in commercial refrigeration compressor systems, chiller circuits, and HVAC equipment where continuous pressure feedback is required. The built-in Schrader valve opener simplifies field installation on standard Schrader-type service ports, eliminating the need for additional adapters or system evacuation during connection.

Output Signal

The 4-20mA current loop output ensures accurate signal transmission even in electrically noisy environments, making this transmitter well-suited for integration with PLCs, building automation controllers, and data acquisition systems.

Specifications

• SKU: 097753
• Model Number: PT5-30M
• Reference Number: 802352
• Pressure Range: 0–435 PSI
• Output Signal: 4-20mA
• Pressure Connection: 7/16″-20
• Connection Type: Schrader valve opener included
• Brand: Copeland
