Description

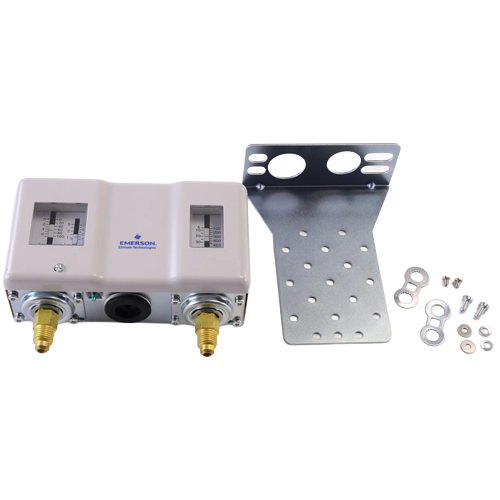

The Copeland 099008 is a PS2 Series Dual Pressure Control engineered for precise refrigeration and HVAC system protection. Combining both low-pressure and high-pressure monitoring in a single, robust control, it safeguards compressors and system components against unsafe operating conditions — helping prevent costly equipment damage and downtime.
The low-pressure side features a wide adjustable setpoint range with automatic reset, allowing the system to resume normal operation once safe pressures are restored. The high-pressure side provides a broad setpoint range with a fixed differential and manual reset, ensuring a technician must verify conditions before the system restarts after a high-pressure trip — a critical safety feature for protecting compressors and refrigerant circuits.
Low Pressure Specifications
- Low Pressure Setpoint Range: 9″Hg to 102 psig
- Low Pressure Differential Setpoint Range: 15 to 73 psig
- Low Pressure Reset: Automatic
High Pressure Specifications
- High Pressure Setpoint Range: 87 to 464 psig
- High Pressure Differential: Fixed
- High Pressure Reset: Manual
Key Features
- Dual pressure control — monitors both low and high side in one unit
- Wide low-pressure setpoint range from deep vacuum (9″Hg) to 102 psig
- High-pressure setpoint range up to 464 psig for high-side protection
- Automatic low-pressure reset for unattended system recovery
- Manual high-pressure reset for added safety and technician oversight
- Fixed high-pressure differential for consistent, repeatable cutout performance
- PS2 Series design built for reliable field performance
Typical Applications
- Commercial refrigeration systems
- Air conditioning and heat pump equipment
- Compressor protection on split and packaged systems
- Low-ambient and high-ambient pressure safety control
