Description

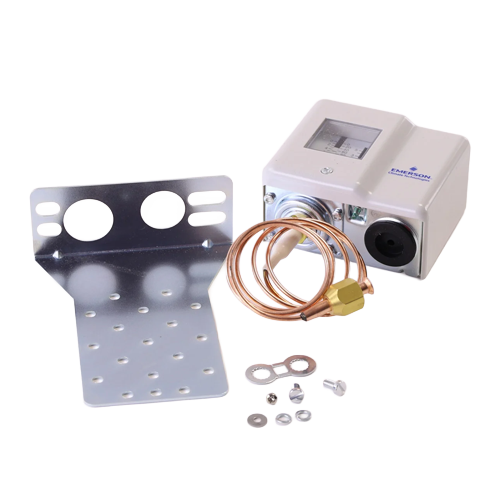

Copeland PS1 Series Single Pressure Control — 099024
The Copeland 099024 is a PS1 Series single low pressure control engineered for precise refrigeration and HVAC system protection. Featuring a wide setpoint range and auto-reset functionality, this control automatically restores system operation once pressure returns to safe levels — minimizing downtime and service calls.
Key Features
- PS1 Series single pressure control configuration
- Setpoint range: 9″Hg (vacuum) to 102 psig for broad application coverage
- Differential range: 15 to 73 psig for flexible system tuning
- Auto reset operation — restores system automatically when pressure normalizes
- Extended adjustment spindles for easy field calibration
- Low pressure control function protects compressors from low-side pressure faults
- 36″ capillary tube for flexible installation and remote sensing
- 7/16″-20 SAE female nut connection with Schrader valve opener for tool-free system access
Specifications
- SKU: 099024
- Series: PS1
- Control Type: Single Low Pressure Control
- Setpoint Range: 9″Hg to 102 psig
- Differential Range: 15 to 73 psig
- Reset Type: Automatic (Auto Reset)
- Capillary Tube Length: 36″
- Connection: 7/16″-20 SAE Female Nut with Schrader Valve Opener
- Adjustment: Extended Adjustment Spindles
Applications
- Commercial refrigeration systems
- Air conditioning and heat pump equipment
- Low-side compressor protection
- Refrigerant circuit pressure monitoring and control
