Description

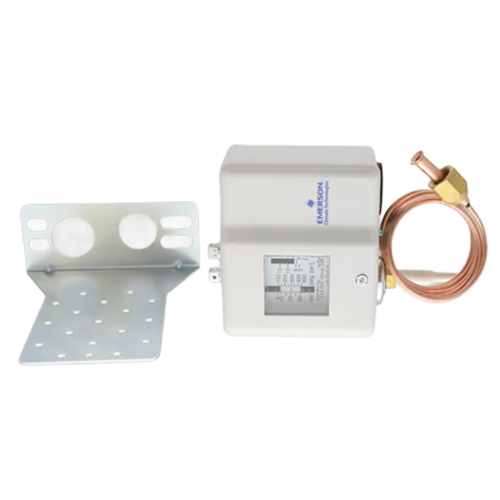

The Copeland 099027 is a PS1 Series single high pressure control engineered for reliable refrigeration and HVAC system protection. Featuring an auto reset mechanism and extended adjustment spindles for convenient field calibration, this control offers a wide setpoint range and differential adjustment to suit a variety of system requirements.
Key Features
- PS1 Series single pressure control configuration
- High pressure control function for system protection
- Auto reset operation — automatically restores system after pressure event
- Extended adjustment spindles for easy setpoint and differential calibration
- 36″ capillary tube for flexible installation and remote sensing
- 7/16″-20 SAE female nut connection with integrated Schrader valve opener
Pressure Specifications
- Setpoint Range: 87 to 464 psig
- Differential Range: 44 to 218 psig
Connection Details
- Connection Type: 7/16″-20 SAE Female Nut
- Includes Schrader valve opener for direct system port access
- Capillary Tube Length: 36″
Applications
- Commercial and industrial refrigeration systems
- Air conditioning and heat pump equipment
- High-side pressure monitoring and protection
- Compressor protection against high-pressure conditions
The Copeland 099027 PS1 pressure control is a dependable solution for protecting compressors and refrigeration circuits from damaging high-pressure conditions. Its broad setpoint and differential ranges make it adaptable across a wide range of refrigerants and system designs, while the extended adjustment spindles simplify on-site setup and fine-tuning.
