Description

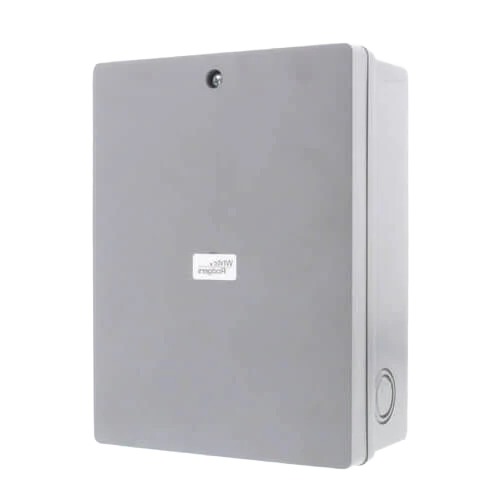

The Copeland 8A18Z-2 is a transformer relay control panel designed as a functional component of the White-Rodgers 21D28-6 evaporative cooler package, providing integrated transformer and relay switching capability for residential and light commercial swamp cooler control systems. In evaporative cooler applications, the transformer relay control panel serves as the central interface between the thermostat or wall switch and the cooler's blower motor and water pump loads, using the step-down transformer to supply low-voltage control power while the relay contacts switch the line-voltage circuits that operate the cooler's functional components. As a named part of the 21D28-6 evaporative cooler package, the 8A18Z-2 is the correct OEM-specified replacement control panel for installations built around that White-Rodgers system, ensuring proper electrical compatibility and control sequencing with the other components in the package. This integrated design simplifies field replacement by consolidating the transformer and relay functions into a single serviceable assembly, reducing diagnostic complexity and minimizing installation time during evaporative cooler service calls. The 8A18Z-2 is well suited for HVAC technicians and maintenance personnel servicing White-Rodgers evaporative cooler systems in residential and light commercial dry climate applications.
Key Features
- Integrated transformer relay control panel combining step-down transformer and relay switching in a single assembly
- OEM-specified component of the White-Rodgers 21D28-6 evaporative cooler package for confirmed system compatibility
- Supplies low-voltage control power to thermostat and wall switch circuits in evaporative cooler control systems
- Relay contacts switch line-voltage blower motor and water pump loads on control signal actuation
- Correct replacement panel for installations built around the White-Rodgers 21D28-6 evaporative cooler system
- Consolidated transformer and relay assembly simplifies field diagnosis and reduces replacement installation time
- Suited for residential and light commercial swamp cooler applications in dry climate regions
