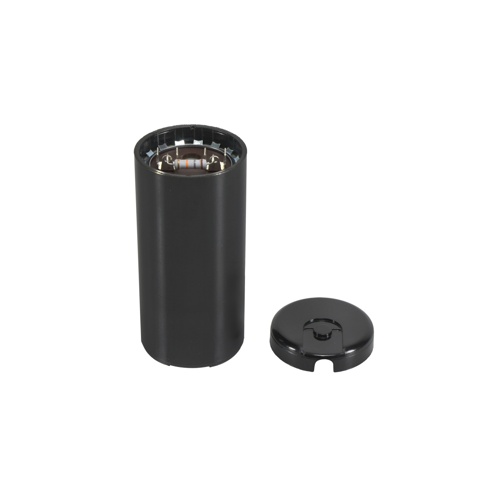

Copeland 914-0036-12 189-227 Microfarad 250VAC Round Start Capacitor

Description

Copeland 914-0036-12 Round Start Capacitor Overview

The Copeland 914-0036-12 is a round start capacitor engineered to deliver the high-torque starting boost that HVAC compressors demand. With a capacitance range of 189–227 microfarads and a 250VAC voltage rating, this capacitor provides the surge of electrical energy needed to bring a compressor motor up to operating speed quickly and reliably — then drops out of the circuit to protect the motor during run operation.

Key Specifications

• Brand: Copeland
• Part Number / SKU: 914-0036-12
• Capacitance Range: 189–227 Microfarads (µF)
• Voltage Rating: 250VAC
• Form Factor: Round
• Type: Start Capacitor

Features & Benefits

• Engineered to Copeland specifications for direct OEM-quality replacement
• Wide capacitance tolerance range (189–227 µF) ensures compatibility across a variety of compressor applications
• 250VAC rating suits standard single-phase residential and light commercial HVAC systems
• Round housing design fits standard capacitor mounting brackets and enclosures
• Provides the high-current starting pulse needed to overcome motor inertia and reduce locked-rotor amp draw
• Helps extend compressor life by enabling faster, cleaner starts

Application

This start capacitor is designed for use with Copeland compressors in air conditioning, heat pump, and refrigeration systems where a start capacitor is required to achieve proper motor starting torque. It is ideal for service technicians performing capacitor replacements on residential and light commercial equipment.

Installation Notes

• Always discharge capacitors safely before handling
• Verify voltage and capacitance ratings match the existing capacitor or OEM specifications before installation
• Use appropriate mounting hardware to secure the round housing in the equipment cabinet
