Description

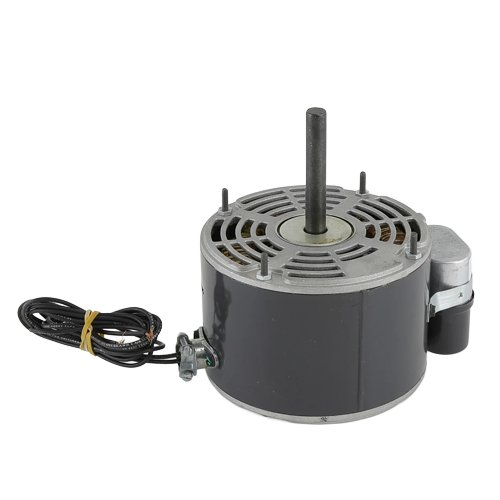

The Copeland 950-0265-00 is a dependable fan motor engineered for efficient, long-lasting performance in demanding HVAC applications. Rated at 1/6 HP and compatible with both 208V and 230V systems, this motor delivers consistent airflow at 1550 RPM — making it a reliable drop-in solution for condensers, air handlers, and other fan-driven equipment.
Its compact Frame 48 footprint and open enclosure design allow for straightforward integration into a wide range of systems, while sleeve bearings provide smooth, quiet operation over extended service life.
Product Highlights
- Dual-voltage compatibility (208/230V) for flexible installation
- Compact Frame 48 design for easy system integration
- Open enclosure promotes airflow and heat dissipation
- Sleeve bearing construction for smooth, quiet operation
- CCWSE rotation for proper fan blade compatibility
Technical Specifications
- Brand: Copeland
- Manufacturer Part Number: 950-0265-00
- Power Rating: 1/6 HP
- Voltage Rating: 208/230V
- Speed: 1550 RPM
- Frame Size: 48
- Shaft Size: 1/2 in. Diameter x 3 in. Length
- Rotation Type: CCWSE (Counter-Clockwise, Shaft End)
- Enclosure Type: Open
- Bearing Type: Sleeve
