Description

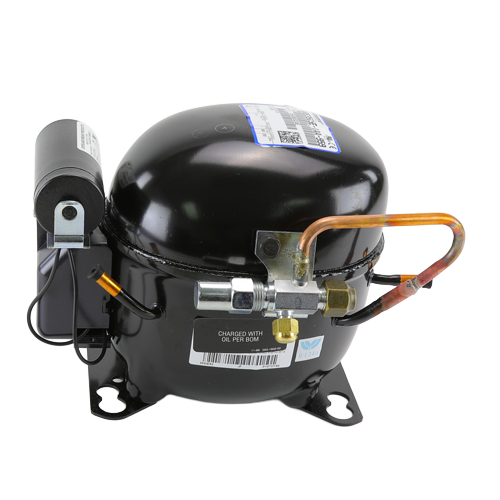

The Copeland ARE35C5E-IAA-959 is a dependable hermetic compressor engineered for residential and light commercial air conditioning and heat pump applications. Delivering 3,500 BTU of cooling capacity at 115V/60Hz single-phase power, this compressor supports modern low-GWP refrigerants — making it a forward-compatible choice for HVAC professionals navigating evolving refrigerant regulations.
With a compact, robust hermetic design and medium-to-high temperature refrigeration capability, it performs reliably in a wide range of installations including vending machines, display cases, and packaged A/C systems.
Key Features
- 3,500 BTU hermetic compressor for A/C and heat pump applications
- Compatible with R-134A, R-450A, and R-513A refrigerants
- 115V / 60Hz / Single-Phase operation
- Medium-to-high temperature refrigeration performance
- Compact hermetic design for reliable, low-maintenance operation
- Trusted Copeland quality — the preferred choice of HVAC professionals
Technical Specifications
- Brand: Copeland
- MPN: ARE35C5E-IAA-959
- Type: Hermetic Compressor
- Cooling Capacity: 3,500 BTU
- Voltage: 115V
- Frequency: 60 Hz
- Phase: Single
- Refrigerants: R-134A, R-450A, R-513A
- Application: Air Conditioning / Heat Pump
- Discharge Line Size: 1/4 in.
- Suction Line Size: 5/16 in.
- Mounting Dimensions: 6.5 in. x 4 in.
- Dimensions: 10.5 in. x 6.4 in. x 7.87 in.
- Weight: 30 lbs.
