Description

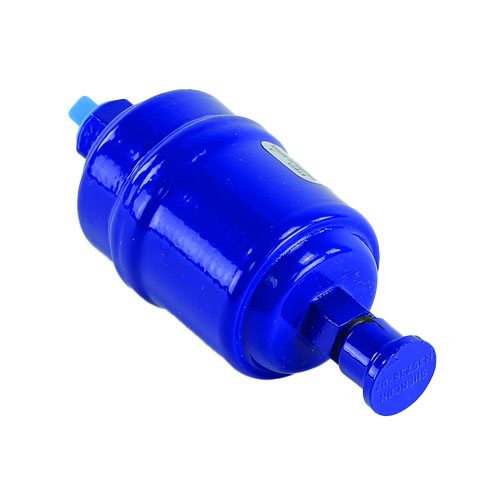

The Copeland EK032FM (SKU 060011) is a high-quality liquid line filter drier engineered to safeguard refrigeration and air conditioning systems from moisture, acid, and particulate contamination. With a robust 680 PSI maximum working pressure rating, this filter drier is built to handle the demands of modern HVAC/R systems and keep refrigerant circuits clean and dry.
Key Features
- Model: EK032FM — a trusted Copeland liquid line filter drier
- Connections: 1/4″ Female Flare inlet x 1/4″ Male Flare outlet for easy in-line installation
- Capacity: 3 cubic inch desiccant core for effective moisture and acid removal
- Filtration: 20 micron filtration rating removes fine particulates and debris from the refrigerant stream
- Maximum Working Pressure: 680 PSI — suitable for a wide range of refrigerants and system pressures
- Compact, in-line design fits easily into liquid line installations with minimal space requirements
- Desiccant core absorbs moisture and neutralizes acids to protect compressors, expansion devices, and other system components
Applications
- Residential and light commercial air conditioning systems
- Refrigeration equipment liquid lines
- New system installations and system changeouts or retrofits
- Post-burnout cleanup to remove contaminants from the refrigerant circuit
Why Use a Liquid Line Filter Drier?
Installing a liquid line filter drier is essential for maintaining system efficiency and longevity. Moisture in a refrigeration circuit can form acids that corrode copper tubing and damage compressor windings. Particulate contamination can clog metering devices and reduce system performance. The Copeland EK032FM addresses both concerns with its 20 micron filtration and moisture-absorbing desiccant, helping to extend equipment life and reduce costly service calls.
Specifications
- SKU: 060011
- Model: EK032FM
- Brand: Copeland
- Connection Type: 1/4″ Female Flare x 1/4″ Male Flare
- Desiccant Volume: 3 cubic inches
- Filtration Rating: 20 Micron
- Maximum Working Pressure: 680 PSI
- Installation: Liquid line, in-line
