Description

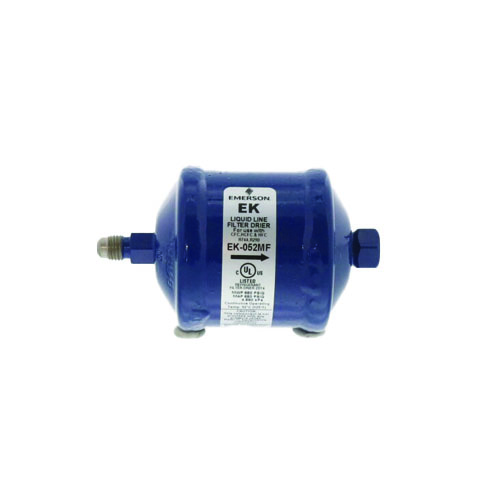

The Copeland EK052MF (SKU 057013) is a compact, high-performance liquid line filter drier engineered to protect refrigerant circuits from moisture, acid, and particulate contamination. With a rugged inline design and straightforward flare connections, this drier is ideal for residential and light commercial HVAC/R service and replacement applications.
Key Features
- Inline liquid line filter drier for moisture, acid, and debris removal
- 20-micron filtration rating captures fine particulates to safeguard compressors and expansion devices
- 680 PSI maximum working pressure for reliable performance across a wide range of refrigerant systems
- 5 cubic inch desiccant volume provides effective moisture absorption capacity
- 1/4″ Male Flare inlet x 1/4″ Female Flare outlet connections for easy, tool-friendly installation
- Compact form factor fits tight equipment spaces
Specifications
- Brand: Copeland
- SKU: 057013
- Model: EK052MF
- Connection Type: 1/4″ Male Flare x 1/4″ Female Flare
- Desiccant Volume: 5 cubic inches
- Filtration Rating: 20 Micron
- Maximum Working Pressure: 680 PSI
- Application: Liquid Line
Applications
- Residential and light commercial air conditioning systems
- Heat pump liquid line protection
- Refrigeration system service and retrofit
- Post-compressor burnout cleanup and system protection
