Description

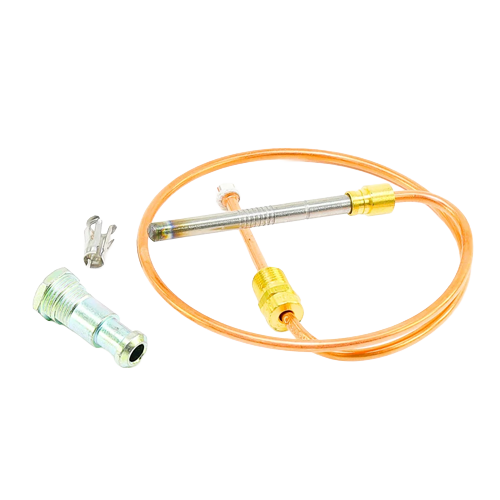

The Copeland H06E-18 thermocouple is designed for use in standing pilot gas heating systems to generate a millivolt signal for gas valve operation and safety control. Measuring 18 inches in length, this thermocouple produces approximately 30 mV when heated by the pilot flame, allowing it to maintain the gas valve in an open position during normal operation. If the pilot flame is lost, the signal drops and the gas valve closes, helping ensure safe system shutdown. It is commonly used in furnaces, boilers, and other gas-fired equipment requiring reliable pilot safety components.
Key Features:
- 18-inch thermocouple length
- Generates approximately 30 mV output
- Designed for standing pilot gas systems
- Maintains gas valve operation when pilot is lit
- Provides safety shutoff when pilot flame is lost
- Suitable for furnaces, boilers, and gas-fired HVAC equipment
- Ideal for replacement and service applications
