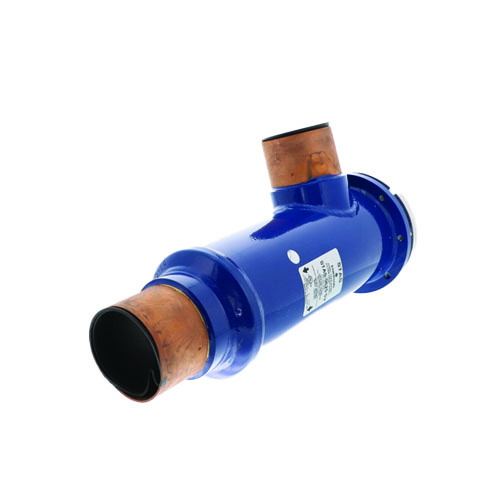

Copeland STAS9625SV Steel Suction Line Filter Drier, 3-1/8″ ODF, 96 Cu In, 500 PSI | SKU 059739

Description

The Copeland STAS9625SV is a heavy-duty steel suction line filter drier engineered to protect refrigeration and air conditioning systems from moisture, acid, and solid contaminants on the suction side of the circuit. With a robust steel shell construction and a generous 96 cubic inch capacity, this drier is built for demanding commercial and industrial refrigeration applications where system reliability is non-negotiable.

Key Features

• Large 96 cubic inch internal volume for high-capacity moisture and contaminant removal
• 3-1/8″ ODF (sweat) connections for straightforward field installation
• Dual core design — accepts standard replacement cores (cores not included) for easy servicing without removing the shell
• 500 PSI maximum working pressure rating for compatibility with a wide range of refrigerants and high-pressure systems
• Steel shell construction delivers exceptional durability and long service life in harsh operating environments
• Suction line placement protects the compressor from harmful moisture, acid, and particulate contamination

Specifications

• Model: STAS9625SV
• SKU: 059739
• Connection Size: 3-1/8″ ODF (Sweat)
• Internal Volume: 96 cubic inches
• Core Type: Dual Core (cores not included)
• Maximum Working Pressure: 500 PSI
• Shell Material: Steel
• Application: Suction Line Filter Drier

Application

The STAS9625SV is ideal for large commercial refrigeration systems, chillers, and industrial HVAC installations where protecting the compressor from contaminants is critical. The serviceable dual-core design allows technicians to replace drier cores on-site without disturbing the piping, reducing downtime and maintenance costs. Always install a suction line filter drier after a compressor burnout or any system contamination event to ensure a clean, dry refrigerant circuit.
