Description

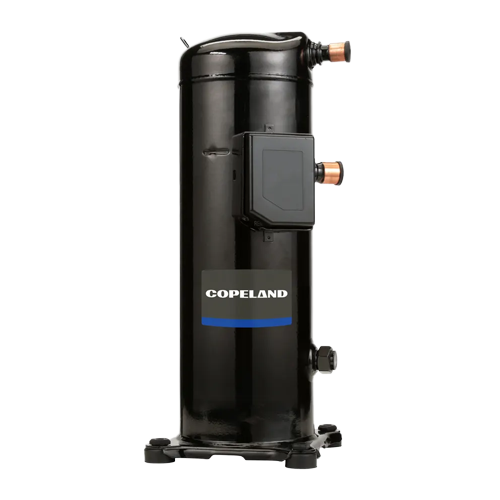

The Copeland Scroll ZP154KCE-TED-455 is a high-capacity, commercial-grade scroll compressor engineered for reliable R-410A performance across a wide range of HVAC applications. Part of the Copeland ZPKC Summit series, this compressor delivers up to 155,000 BTU of cooling capacity and is designed for seamless integration into split systems, rooftop units, and chiller applications.
Key Features
- Advanced Scroll Temperature Protection (ASTP) safeguards the compressor against dangerously high discharge temperatures, extending service life and reducing the risk of costly failures
- Broad R-410A compatibility makes this unit suitable for a wide variety of modern HVAC system configurations
- Dual-frequency operation supports both 50 Hz and 60 Hz electrical systems for flexible deployment
- Multi-voltage design accommodates 460 VAC at 60 Hz and 380/420 VAC at 50 Hz
Specifications
- Model: ZP154KCE-TED-455
- Horsepower: 13 HP
- Capacity Range: 113,000 – 155,000 BTU
- Refrigerant: R-410A
- Voltage: 460 VAC (60 Hz) / 380–420 VAC (50 Hz)
- Phase: 3-Phase
- Frequency: 50 Hz / 60 Hz
- Cooling Efficiency (EER): 11.0 – 11.1
Applications
- Commercial split systems
- Rooftop HVAC units
- Chiller systems
- Air conditioning
