Description
Overview

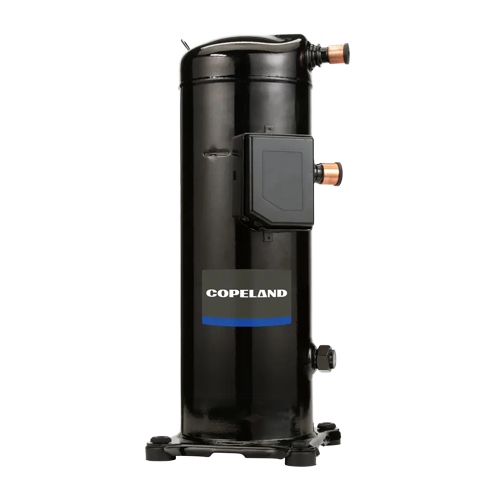

The Copeland ZP182KCE-TE5-950 is a high-capacity scroll compressor from the ZPKC series, engineered for demanding commercial air conditioning applications. Delivering 183,000 BTU of cooling capacity and supporting three-phase, 230-volt operation, this compressor is built to handle the rigors of large-scale cooling systems with outstanding efficiency and reliability.
Advanced Scroll Temperature Protection (ASTP)
This compressor features Copeland’s Advanced Scroll Temperature Protection (ASTP) technology, which continuously monitors and guards against high discharge temperatures. ASTP helps prevent compressor damage caused by thermal overload, extending service life and reducing costly downtime.
Key Features
- Advanced Scroll Temperature Protection (ASTP) for high discharge temperature safety
- 183,000 BTU cooling capacity
- Three-phase, 230-volt operation
- Compatible with R-410A refrigerant
- Cooling efficiency up to 11.2 EER
- Supports both 50 Hz and 60 Hz operation
- Available voltage configurations: 200/220 VAC (50 Hz) and 200/230 VAC (60 Hz)
Specifications
- SKU: ZP182KCE-TE5-950
- Series: ZPKC
- Application: Air Conditioning
- Capacity Range: 133,500–183,000 BTU
- Compatible Refrigerant: R-410A
- EER: 11.1–11.2 (up to 11.2)
- Frequency: 50 Hz / 60 Hz
- Voltage (50 Hz): 200/220 VAC
- Voltage (60 Hz): 200/230 VAC
- Phase: Three-phase
