Description

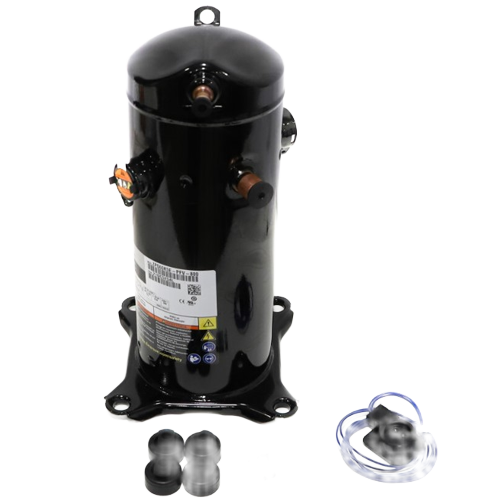

Copeland ZP34LXE-TFD-800 Hermetic Scroll Compressor
The Copeland ZP34LXE-TFD-800 is a high-performance hermetic scroll compressor engineered for demanding commercial refrigeration and air conditioning applications. Delivering 34,600 BTU of cooling capacity, this compressor operates on a 460V three-phase power supply and is optimized for use with R410A refrigerant — making it a dependable choice for modern, environmentally responsible HVAC systems. Its robust scroll design ensures efficient refrigerant compression, quieter operation, and long-term reliability across a wide range of system configurations.
Key Features
- Hermetic scroll compressor design for efficient, low-vibration operation
- Optimized for R410A refrigerant — ideal for modern commercial HVAC systems
- 460V three-phase power supply for commercial-grade performance
- 34,600 BTU cooling output for effective temperature control
- Polyolester (POE) oil lubrication with a 42 oz initial oil charge
- Sound level of 71–76 dBA for relatively quiet operation
- Built-in compressor protection for enhanced reliability and longevity
- UL Recognized for safety and compliance assurance
- Made in the USA
Technical Specifications
- MPN: ZP34LXE-TFD-800
- Compressor Type: Scroll (Hermetic)
- Voltage: 460 VAC
- Phase: Three
- Refrigerant: R-410A
- BTU Output: 34,600 BTU
- Displacement: 2 in³/Rev
- Oil Type: Polyolester (POE)
- Initial Oil Charge: 42 oz
- Suction Line Size: 7/8 in
- Discharge Connection Size: 1/2 in
- Sound Level: 71–76 dBA
- Weight: 63.8 lbs
- Dimensions: 9.56 x 9.56 x 16.94 in
- Protection: Yes
- Approvals: UL Recognized
- Country of Origin: USA
