Description

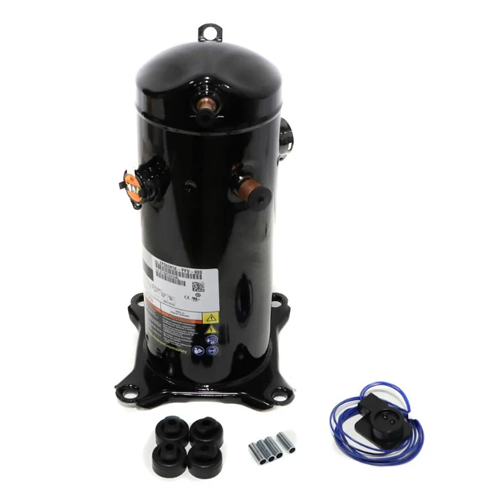

The Copeland ZP37LXE-PFV-800 is a high-performance fixed-capacity scroll compressor designed for residential and light commercial air conditioning systems using R-410A refrigerant. Built on Copeland’s proven scroll platform, this compressor delivers dependable cooling performance, excellent efficiency, and long-term reliability for service replacement and OEM applications.
With a cooling capacity of up to 37,800 BTU/hr, the ZP37LXE-PFV-800 is ideal for approximately 3 to 4-ton air conditioning systems. Its durable scroll design minimizes moving parts, reducing vibration and wear while providing smooth, quiet operation. The compressor utilizes POE oil and features standard 208/230V single-phase operation for compatibility with a wide range of residential and commercial HVAC equipment.
The ZP37LXE-PFV-800 serves as a replacement for numerous older Copeland ZP-series compressors, making it a versatile service solution for restoring system performance and reliability.
Key Features
- Genuine Copeland fixed-capacity scroll compressor
- Designed for R-410A refrigerant systems
- Up to 37,800 BTU/hr cooling capacity
- 208/230V single-phase, 60 Hz operation
- Durable scroll compression technology for reliable performance
- Low vibration and quiet operation
- Uses Polyol Ester (POE) lubricant
- Internal motor protection for added reliability
- Compatible with numerous residential and light commercial HVAC systems
- Direct replacement for many legacy Copeland ZP-series compressors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Copeland |
| Model Number | ZP37LXE-PFV-800 |
| Compressor Type | Scroll |
| Capacity | 37,000-37,800 BTU/hr |
| Refrigerant | R-410A |
| Voltage | 208/230 VAC |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Rated Load Amps (RLA) | 19.9 A |
| Locked Rotor Amps (LRA) | 109 A |
| Maximum Continuous Current (MCC) | 27.9 A |
| Horsepower | 3 HP |
| Oil Type | POE (Polyol Ester) |
| Suction Connection | 7/8 in. Stub |
| Discharge Connection | 1/2 in. Stub |
| Mounting Footprint | 7.5 in. x 7.5 in. |
| Height | 18 in. |
| Approximate Weight | 75-80 lbs |
| Capacitor Requirement | 45 µF / 370-440 VAC |
